Nome da marca: Aideepen
Tipo de motor: MOTOR CC

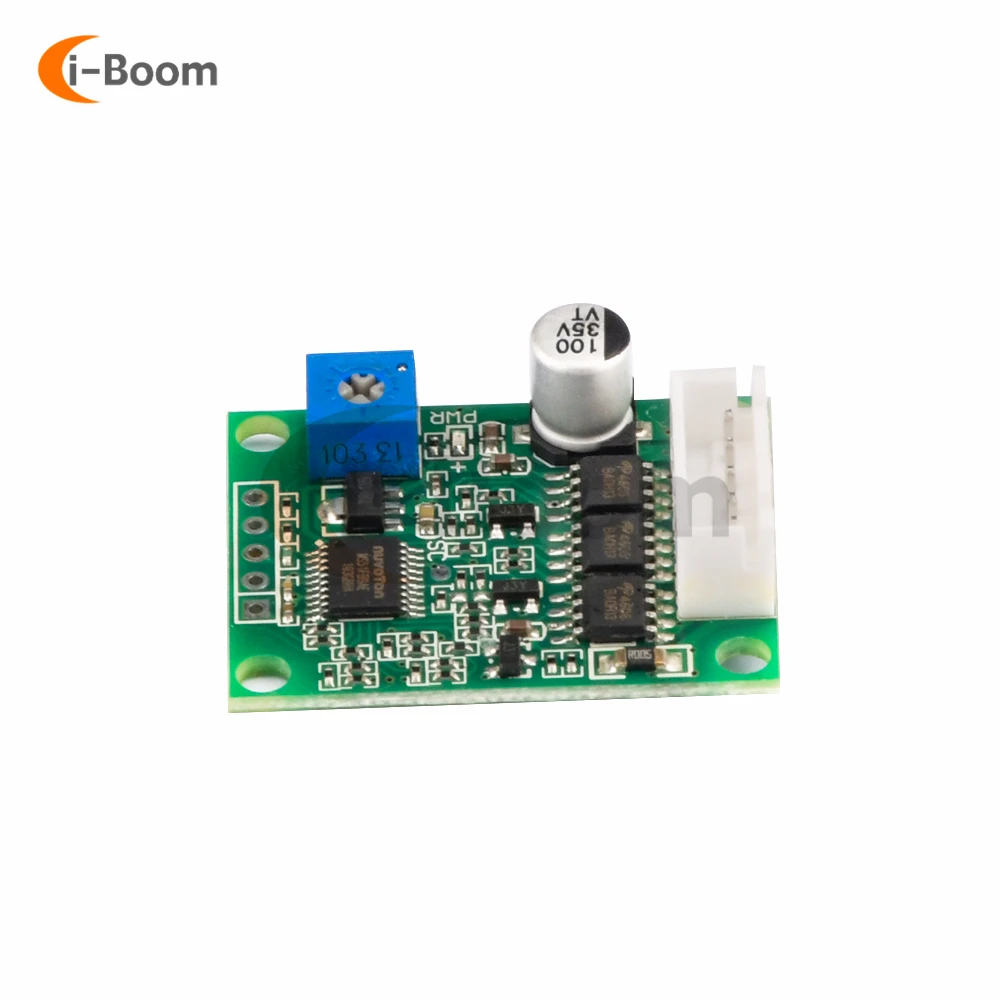

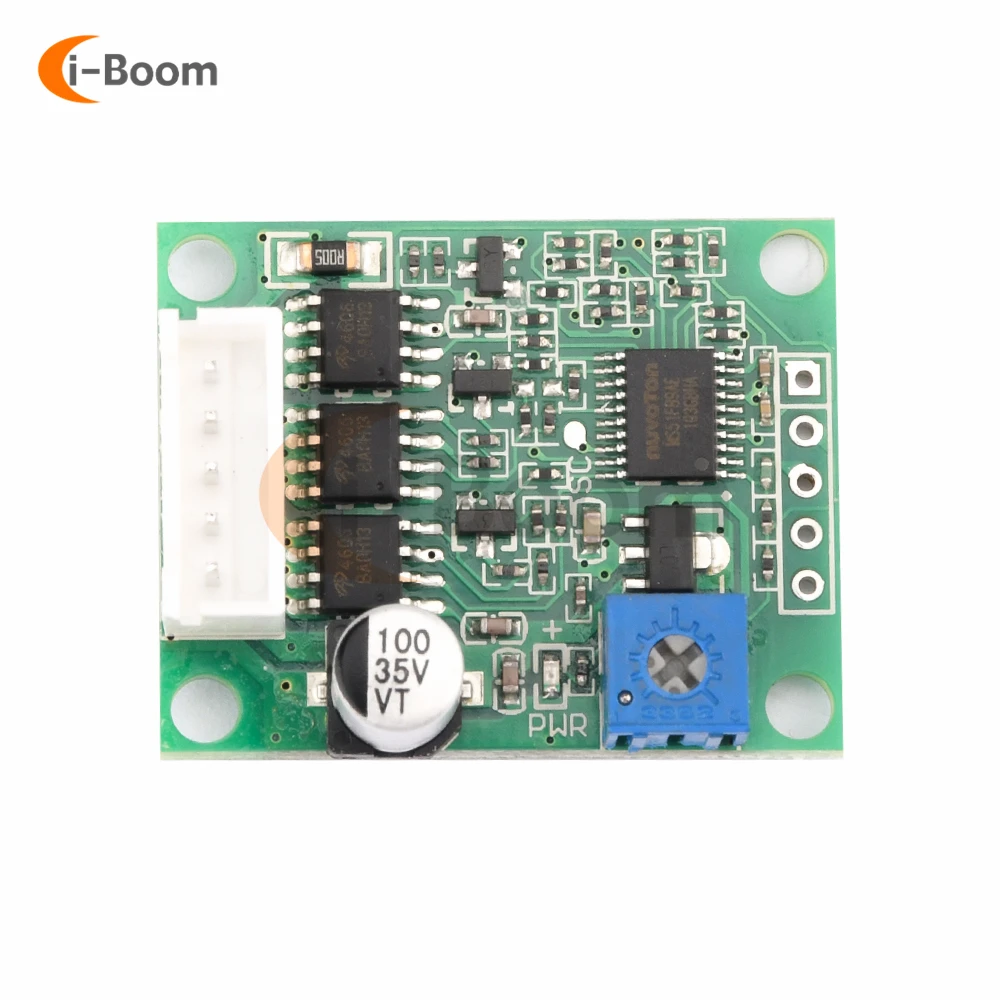

Número do modelo: BLDC 3-Phase Brushless DC Motor Driver
Certificado: CE

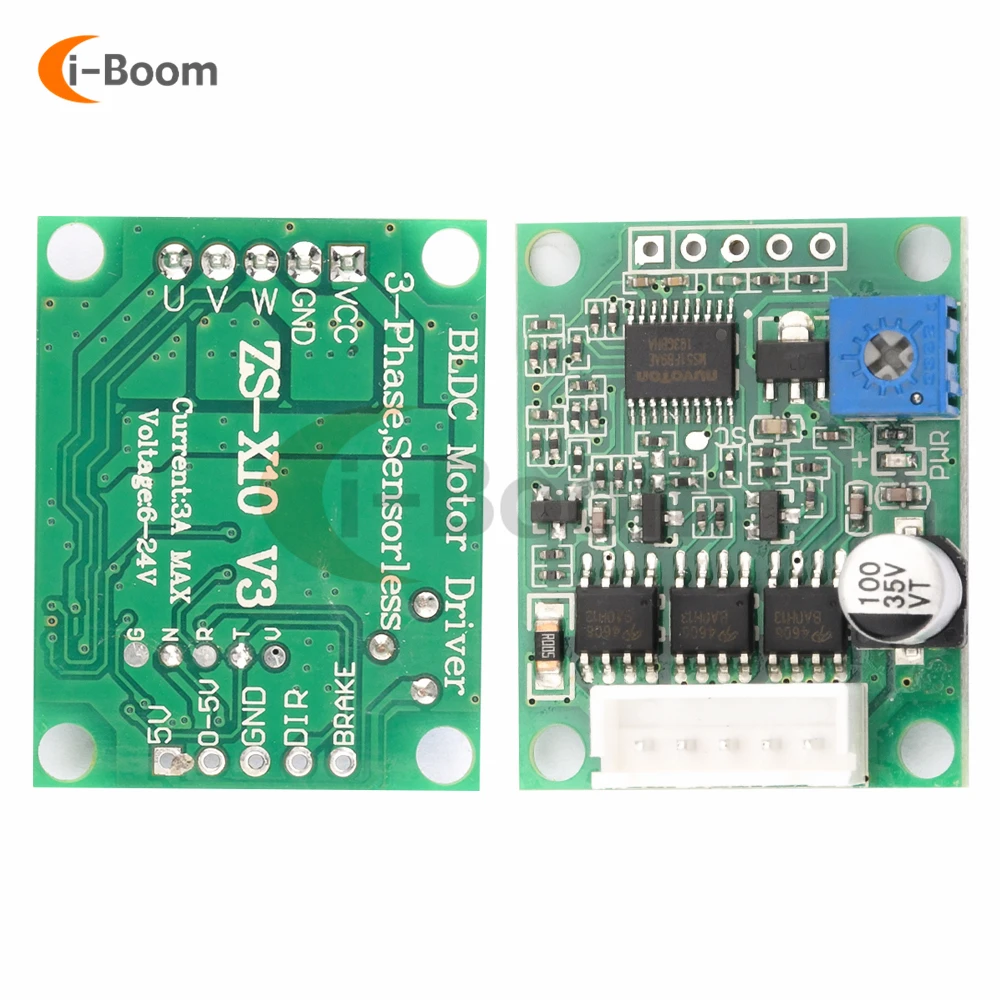

Interface Description:
DC6-20V 60W
1. U V W phase line output is connected to the motor
2. VCC GND main power supply (external DC power supply)
Product parameters:
Product name: Three-phase DC brushless and Hallless drive
Model: X10 (no sense)
Working voltage: 6-20V (limit 5-24V)
Drive current: 3A max
Maximum speed: 224000 RPM (2 pole motor), 74000 RPM (6 pole motor), 40000 RPM (12 pole motor), 35000 RPM (14 pole motor).

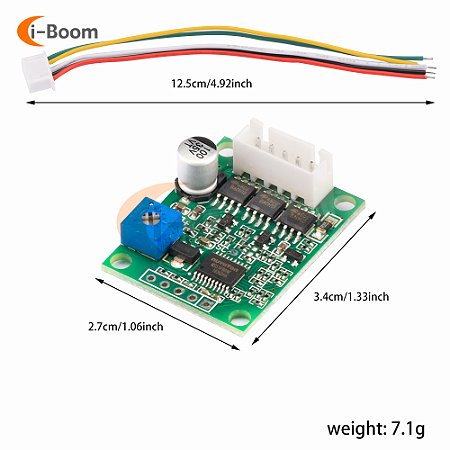

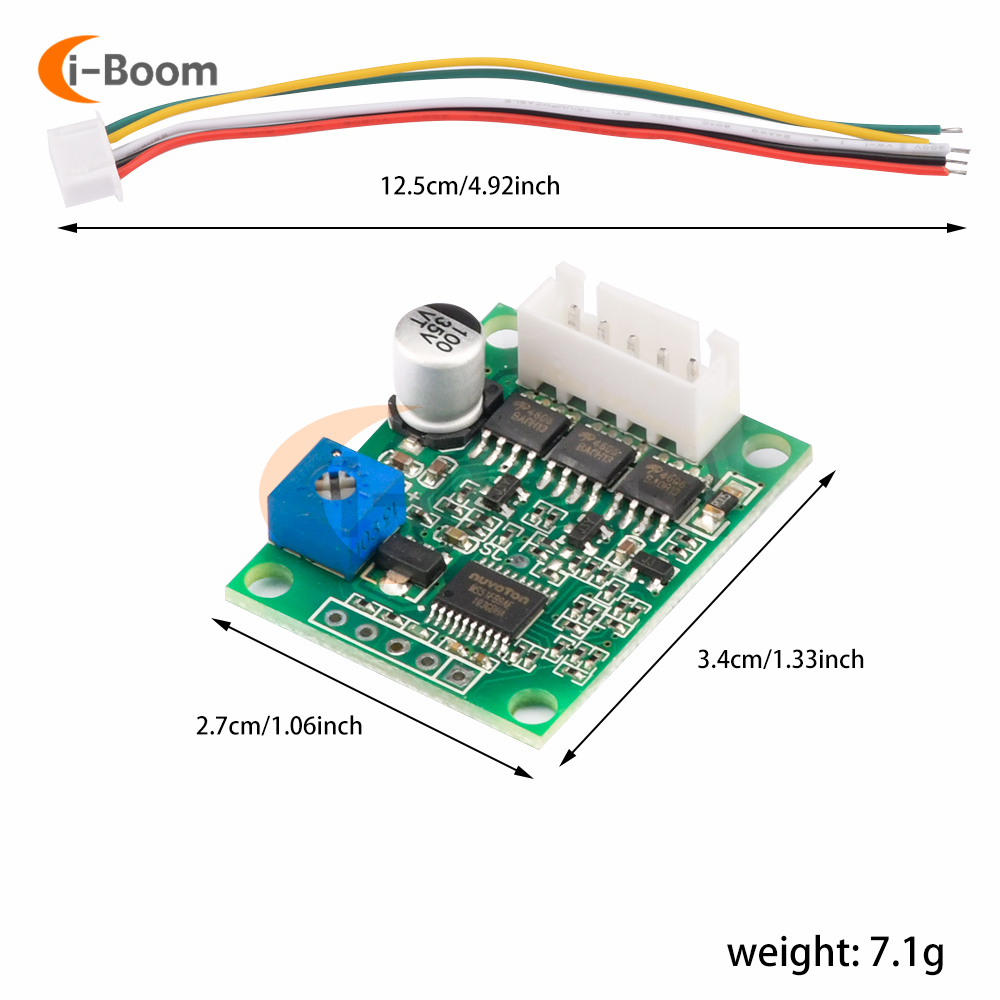

Product size: length 34MM*width 27MM*height 11MM
Weight: X10 8g (including wire)
Features: This driver is a low-power fan brushless driver, and it can also be embedded in other systems. It is specially used for air pumps, water pumps, oil pumps, fans, etc. and industrial control electric gadgets for small space and low-power DC three-phase brushless motors. Default The middle timing is not suitable for high-power motors, such as long-term full load current operation, Jianyi plus fan cooling
Precautions:
1. There is no fuse in the power supply circuit on the motherboard. Jianyi has added it himself. Reverse connection of the positive and negative poles of the power supply will cause permanent damage to some of the chips on the board (even if it does not work for 1 second)
2. There is motor blocking protection during normal operation. Please do not artificially short-circuit when the module is not working normally. Once short-circuiting may cause the line to burst, please use small current and low voltage test for the first wiring test. Matching use of three-phase DC brushless motors with equivalent current and power
3. Do not connect the motor that is obviously inconsistent with the drive module voltage, current, or power, to avoid inexplicable "nonsensical" damage
