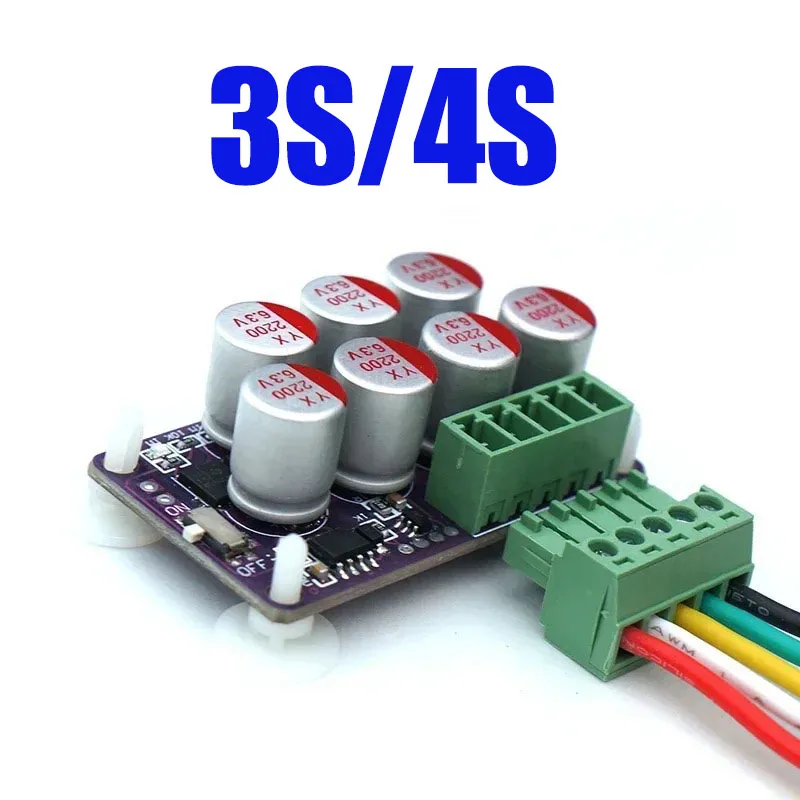

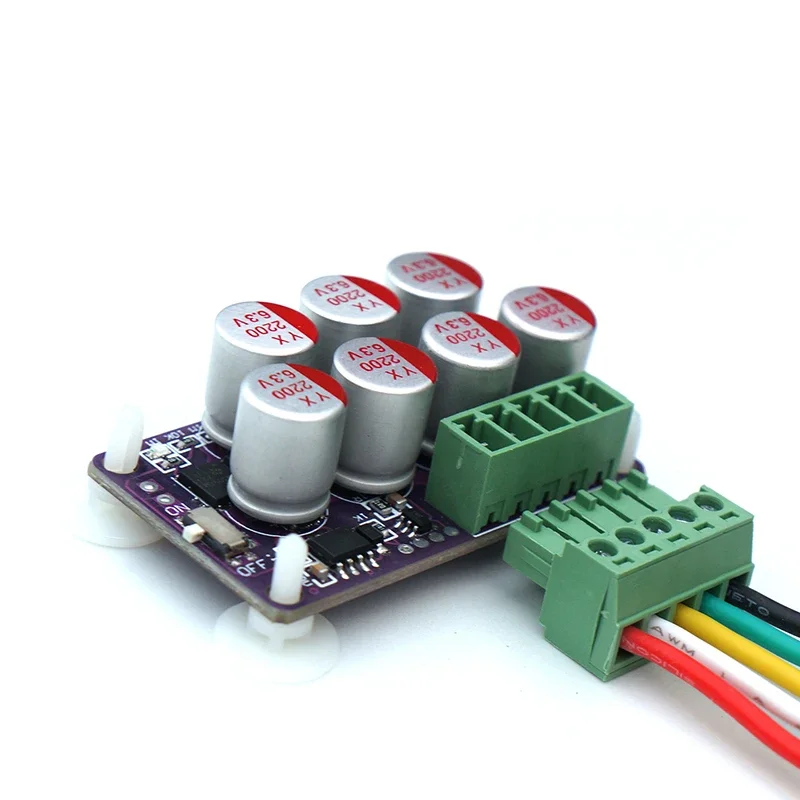

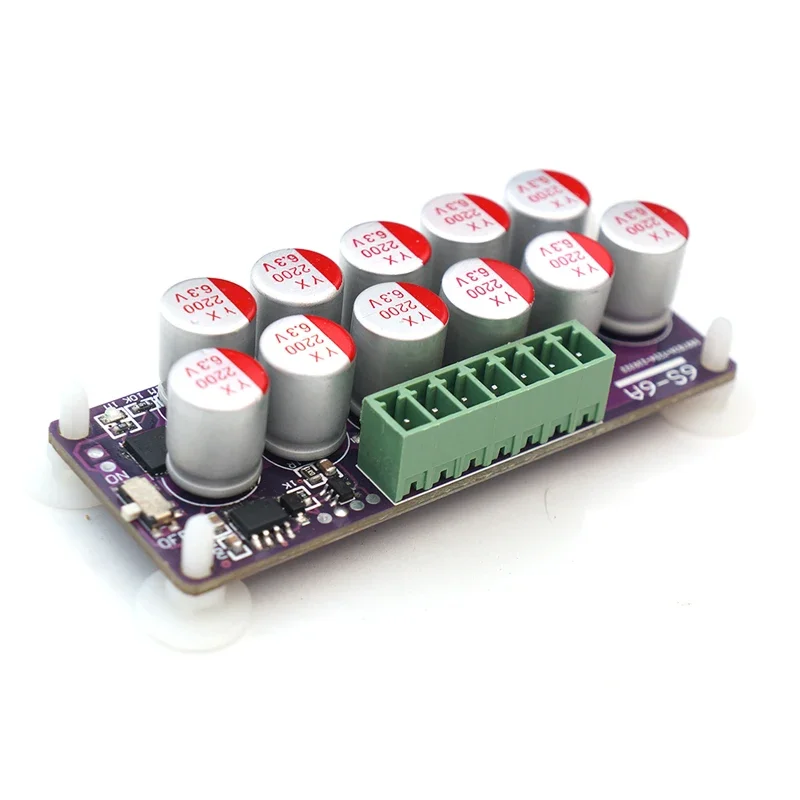

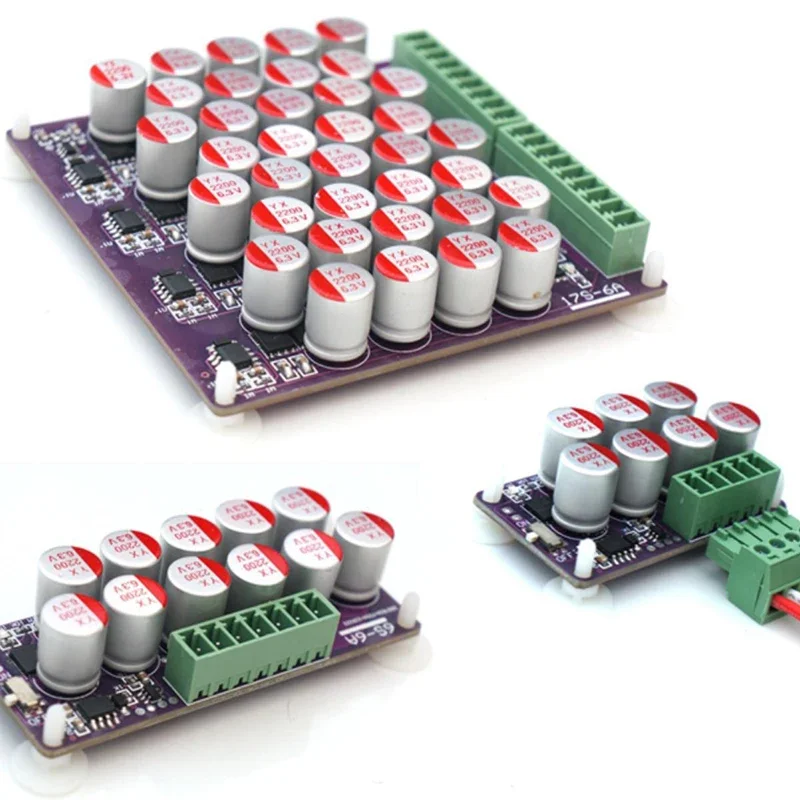

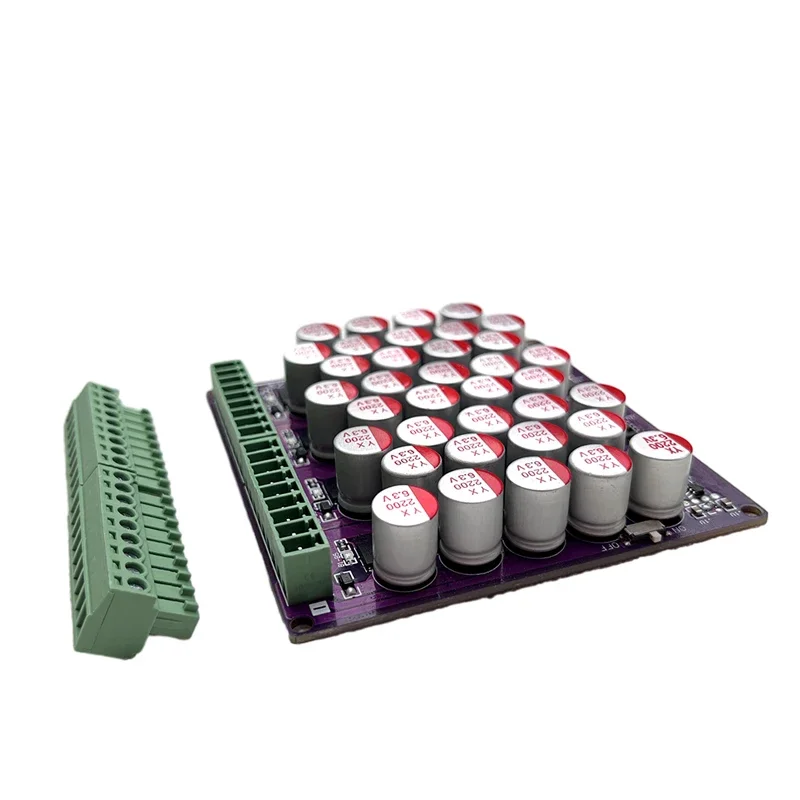

6a 0.01v 18650 bateria equalizador ativo balanceador equalização balanceamento li-ion/lifepo4 placa de equilíbrio de lítio 4S 6S 8S 16S 17S
-
- 1x de R$ 320,12 sem juros
- 2x de R$ 160,06 sem juros
- 3x de R$ 111,00
- 4x de R$ 84,07
- 5x de R$ 67,92
- 6x de R$ 57,15
-
R$ 304,11
Nome da marca: Nenhum
Químico Hign-em causa: Nenhuma
Tipo de Acessório: Acessórios para carregadores
Origem: CN (Origem)
Certificado: CE

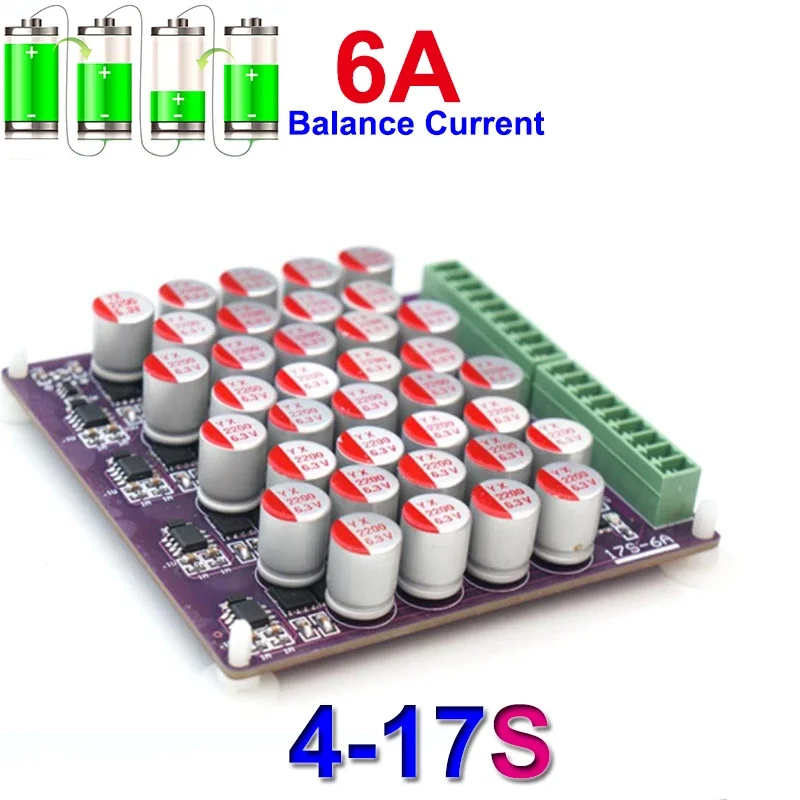

Type: 6A Battery Active Equalizer Balancer
Model: 4S/6S/8S/16S/17S
Balancing Method: Active balancing of energy transfer
Balanced Current: Max 6A (the greater the voltage difference, the greater the current)
Equalization Accuracy: 0.01V
Operating Power Consumption: 1.5mA-2.5mA
Under Voltage Protection: Automatic shutdown below 2.5V
Applicable Battery Type: ternary lithium, Lithium iron phosphate, Lithium titanate
Applicable Voltage: Single cell 2.5V-4.4V

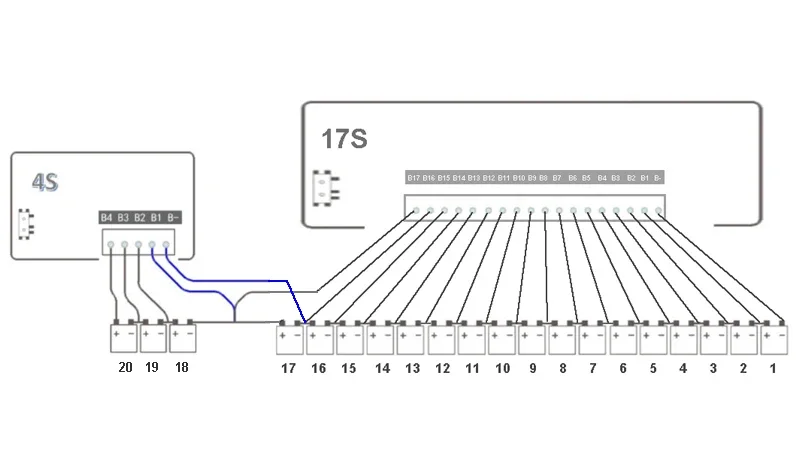

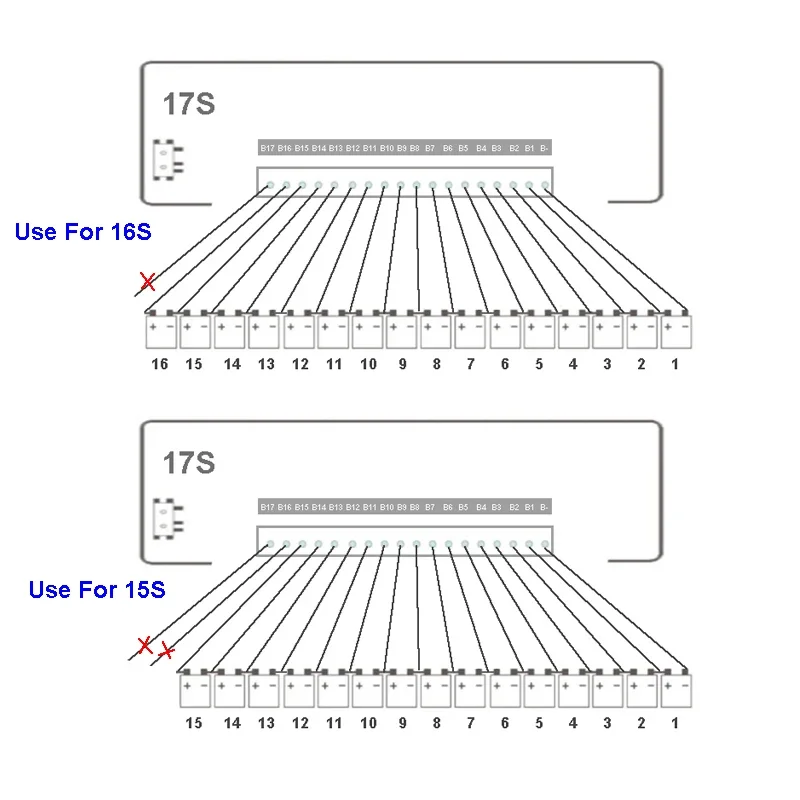

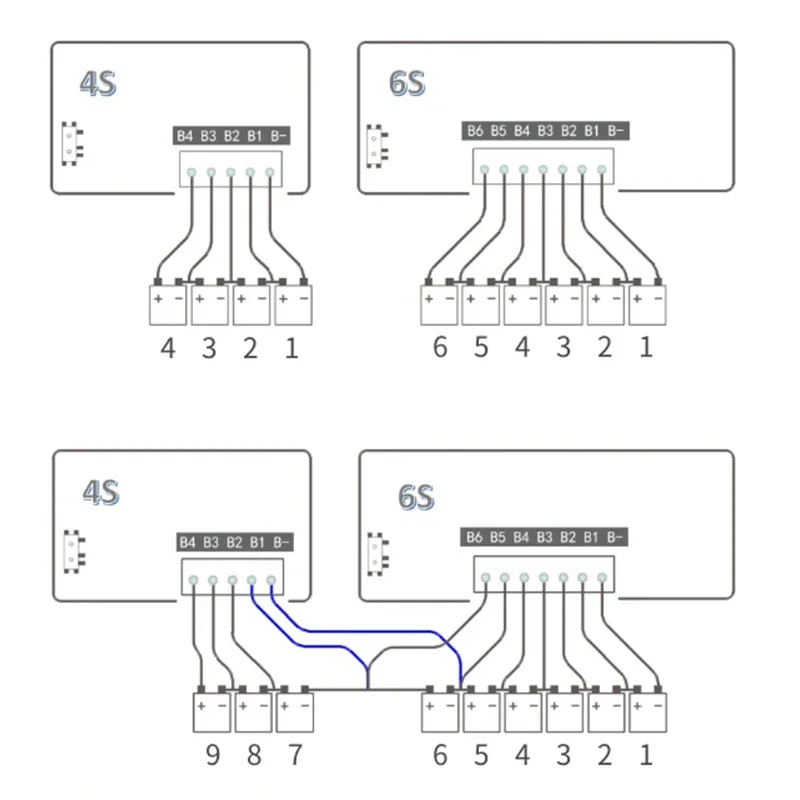

It can be used in series reduction or multi board cascade expansion.
Hybrid equalization simplifies complexity and eliminates the need to detect voltage differences between batteries. It directly transfers energy between adjacent capacitors in high-frequency equivalent parallel, and is controlled by a microcontroller + high-power MOS, resulting in better equalization current and accuracy, as well as lower circuit power consumption.

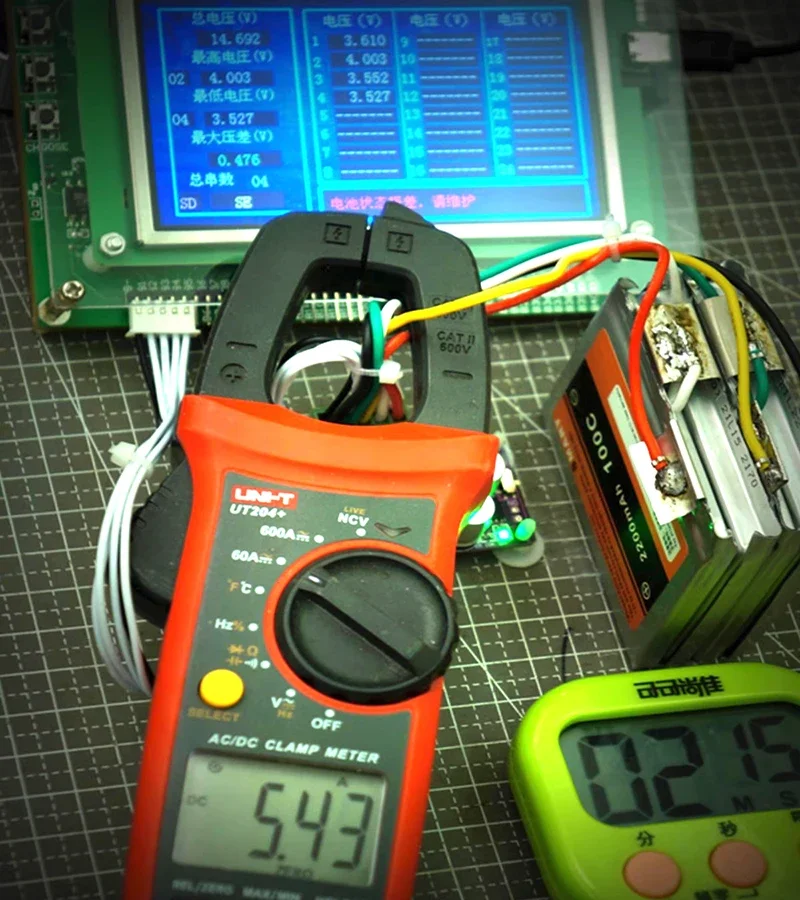

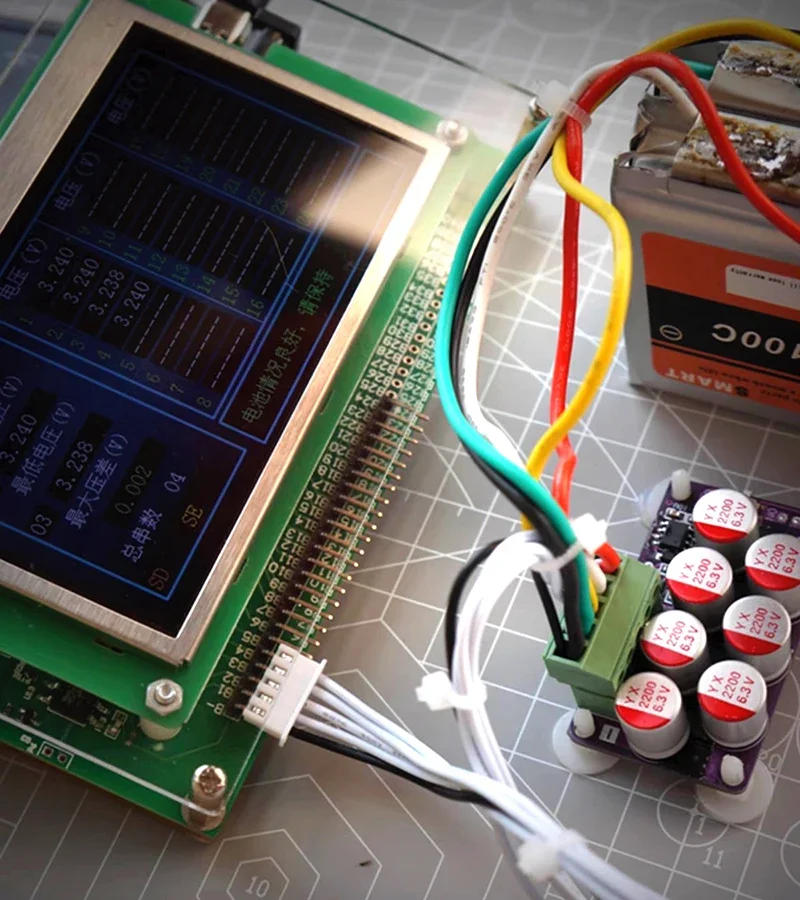

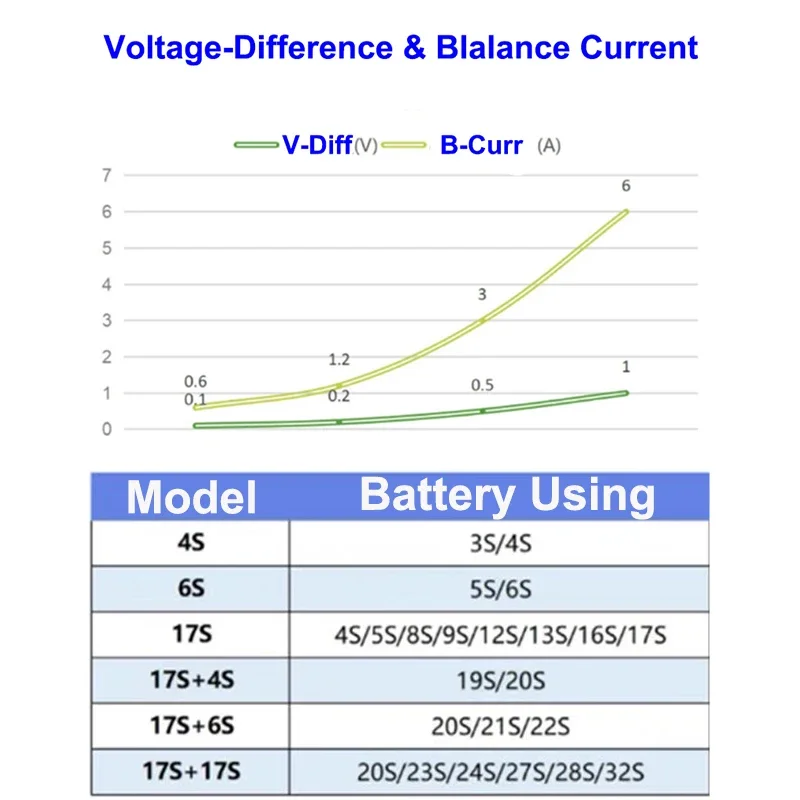

The operating power consumption is approximately 1.5-2.5mA, and the battery cell voltage automatically shuts down when it is lower than 2.5V to avoid excessive discharge of the battery. The maximum equilibrium current is about 6A, and the greater the voltage difference, the greater the current. (The test parameters are for reference only: about 6A when the voltage difference is 1V; about 3A when the voltage difference is 0.5V; about 1.2A when the voltage difference is 0.2V;)
Parameters:
Model:4S/6S/17S
Balancing Method:Active balancing of energy transfer
Balanced Current:Max 6A (the greater the voltage difference, the greater the current)
Equalization Accuracy:0.01V
Operating Power Consumption:1.5mA-2.5mA
Under Voltage Protection:Automatic shutdown below 2.5V
Applicable Battery Type:Ternary lithium, Lithium iron phosphate, Lithium titanate
Applicable Voltage:Single cell 2.5V-4.4V
Packing List:
1* Battery Active Equalizer Board
1* Cable plug
1* Connecting wires
