2 conjuntos lora32 v3 868mhz 915mhz esp32 lora placa de desenvolvimento sx1262 0.96 Polegada display oled wifi + bt lora kit para iot meshtastico

Código: 1736772982

Selecione a opção de Cor:

A partir de R$ 670,12

até 2x de R$ 335,06 sem juros

ou R$ 636,61 via Pix

Parcelas
- 1x de R$ 671,22 sem juros
- 2x de R$ 335,61 sem juros
- 3x de R$ 240,45
- 4x de R$ 184,52
- 5x de R$ 150,96
- 6x de R$ 128,58
- 7x de R$ 112,60
- 8x de R$ 100,62
- 9x de R$ 91,29
- 10x de R$ 83,84
- 11x de R$ 77,73
- 12x de R$ 72,65
R$ 637,66

Parcelas
- 1x de R$ 670,12 sem juros
- 2x de R$ 335,06 sem juros
- 3x de R$ 240,06
- 4x de R$ 184,22
- 5x de R$ 150,71
- 6x de R$ 128,37
- 7x de R$ 112,42
- 8x de R$ 100,45
- 9x de R$ 91,14
- 10x de R$ 83,70
- 11x de R$ 77,61
- 12x de R$ 72,53
R$ 636,61

Parcelas
- 1x de R$ 670,12 sem juros
- 2x de R$ 335,06 sem juros
- 3x de R$ 240,06
- 4x de R$ 184,22
- 5x de R$ 150,71
- 6x de R$ 128,37
- 7x de R$ 112,42
- 8x de R$ 100,45
- 9x de R$ 91,14
- 10x de R$ 83,70
- 11x de R$ 77,61
- 12x de R$ 72,53
R$ 636,61

Nome da marca: RCmall

Origem: CN (Origem)

Químico Hign-em causa: Nenhum

Número do modelo: FZ2886S

Support frequency: 868-915MHz

Main chip: espressif esp32 and SX1262

Operating voltage: 3.3V to 7V

Flash: 64M-Bits

Lora chip: SX1262

Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth

SKU: FZ2886S

Quantity: 2 Sets

USB Interface: Type-C

Open communication distance: 2.8KM

USB to serial port chip: CP2102

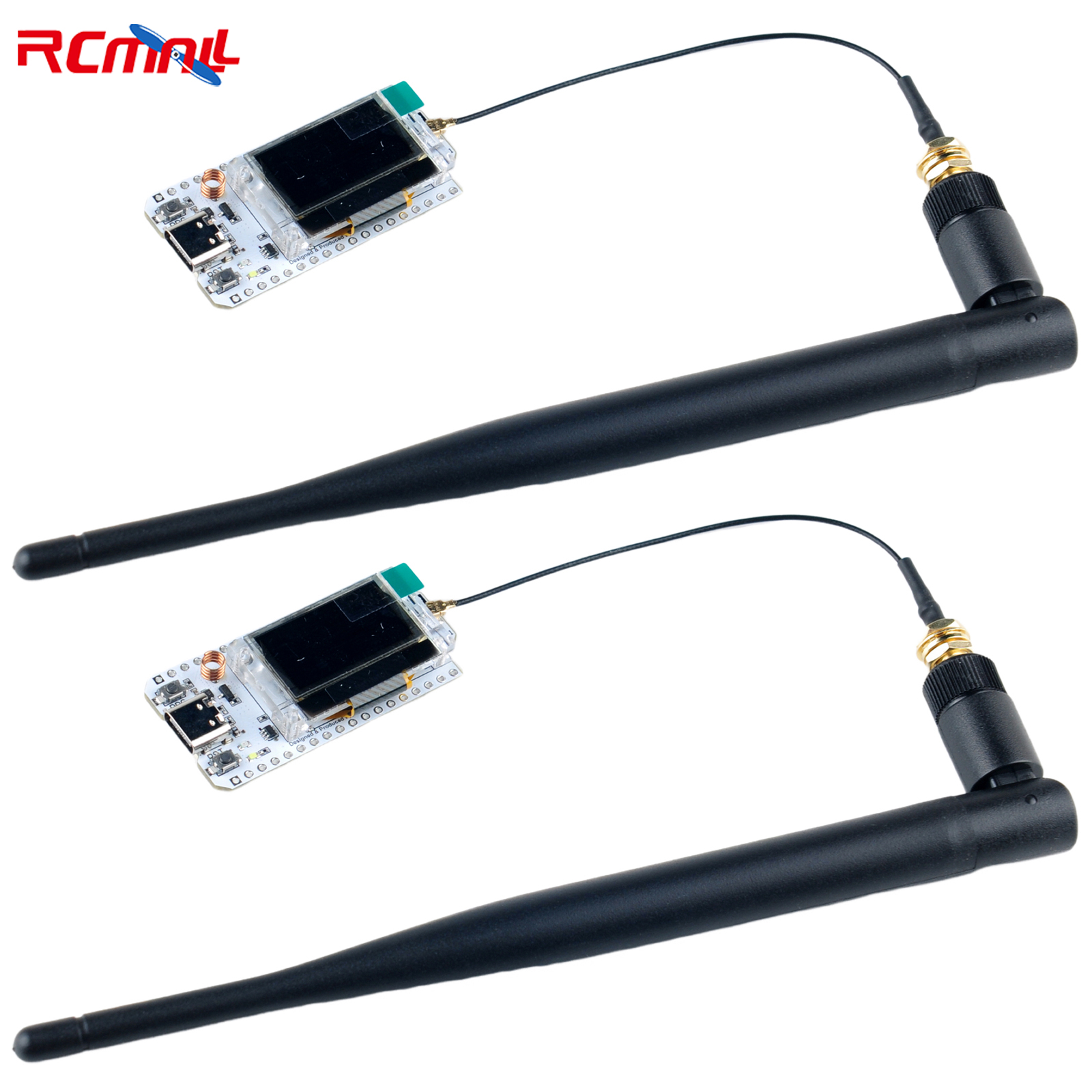

2Sets LoRa32 V3 868MHz 915MHz ESP32 LoRa Development Board SX1262 0.96 Inch OLED Display WIFI+BT Lora Kit for Meshtastic IoT

Description: WiFi LoRa 32 is a classic IoT dev-board , it has been loved by developers and makers. The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions. It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers. Note: Not include battery; Features: - Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz). - SX1262 LoRa node chip. - Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures. - Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching). - Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use. - Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information. - Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing. - Support the Arduino development environment. - We provide ESP32 + LoRaWAN protocol Arduino® library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed. - With good RF circuit design and low-power design. 868MHz / 915MHz Antenna 5DBi SMA Male Omni-directional antenna with SMA Male with IPEX Extenstion Calbe

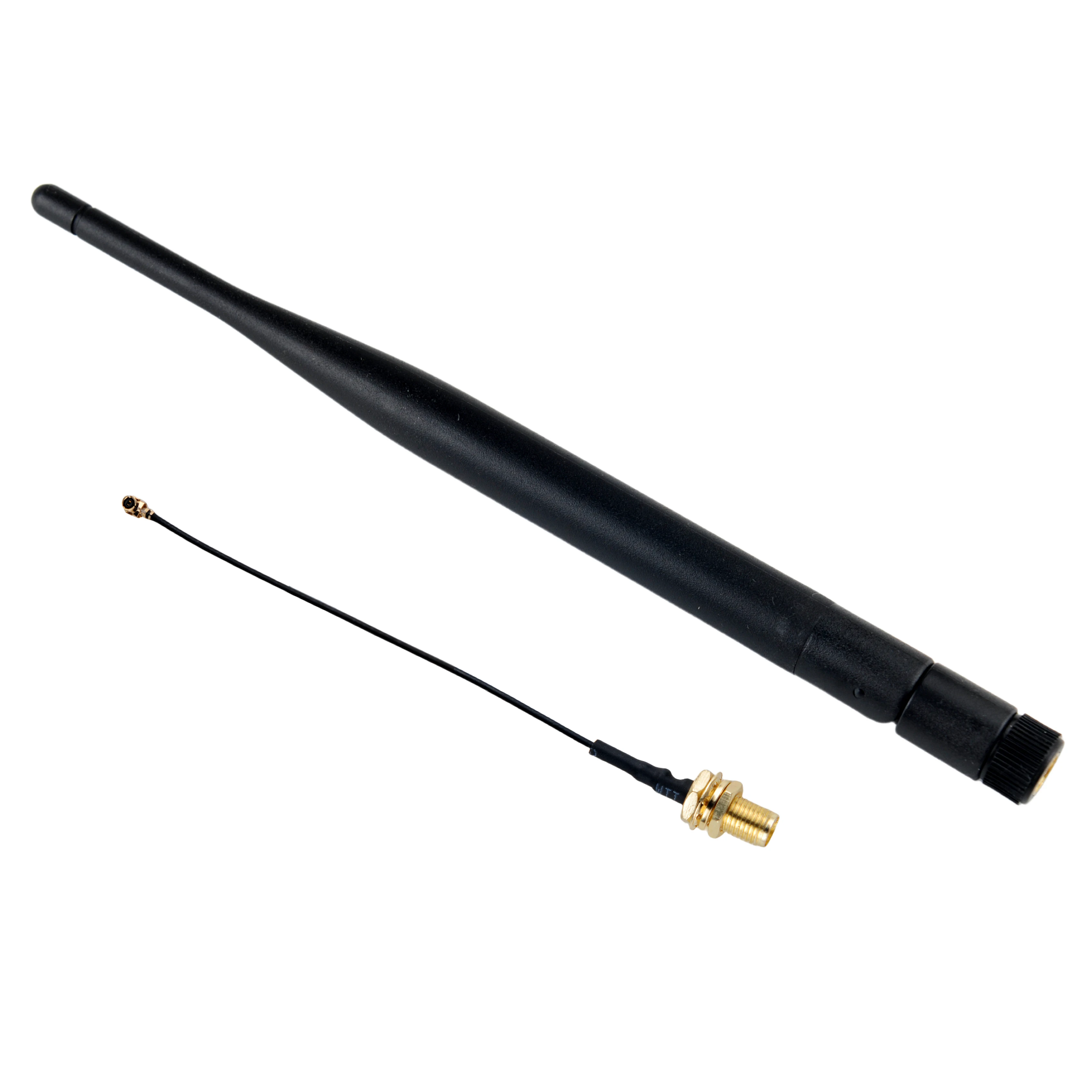

Frequency: 868MHz / 915MHzGain: 5dBiVSWR: <1.5Impedance: 50 ?Antenna Length?19.5cmConnector: SMA MaleSMA Male with IPEX Extenstion Calbe Length: 10cm Package Includes:2 X ESP32 Lora V3 OLED development board2 X 868MHz Antenna with SMA Male with IPEX Extenstion Calbe2 X JST 1.25mm-2P Connector2.54 pin (no welding) OR2 X ESP32 Lora V3 OLED development board2 X 915MHz Antenna with SMA Male with IPEX Extenstion Calbe2 X JST 1.25mm-2P Connector2.54 pin (no welding) Document Link : https://github.com/HelTecAutomation/Heltec_ESP32
