2 conjuntos de placa de desenvolvimento lora32 v3 868mhz 915mhz sx1262 0.96 Polegada display oled bt + wifi lora kit para arduino iot casa inteligente
-
- 1x de R$ 639,99 sem juros
- 2x de R$ 319,99 sem juros
- 3x de R$ 221,92
- 4x de R$ 168,08
- 5x de R$ 135,78
- 6x de R$ 114,25
-
R$ 607,99
Nome da marca: RCmall
Origem: CN (Origem)
Químico Hign-em causa: Nenhum
Número do modelo: FZ2886S

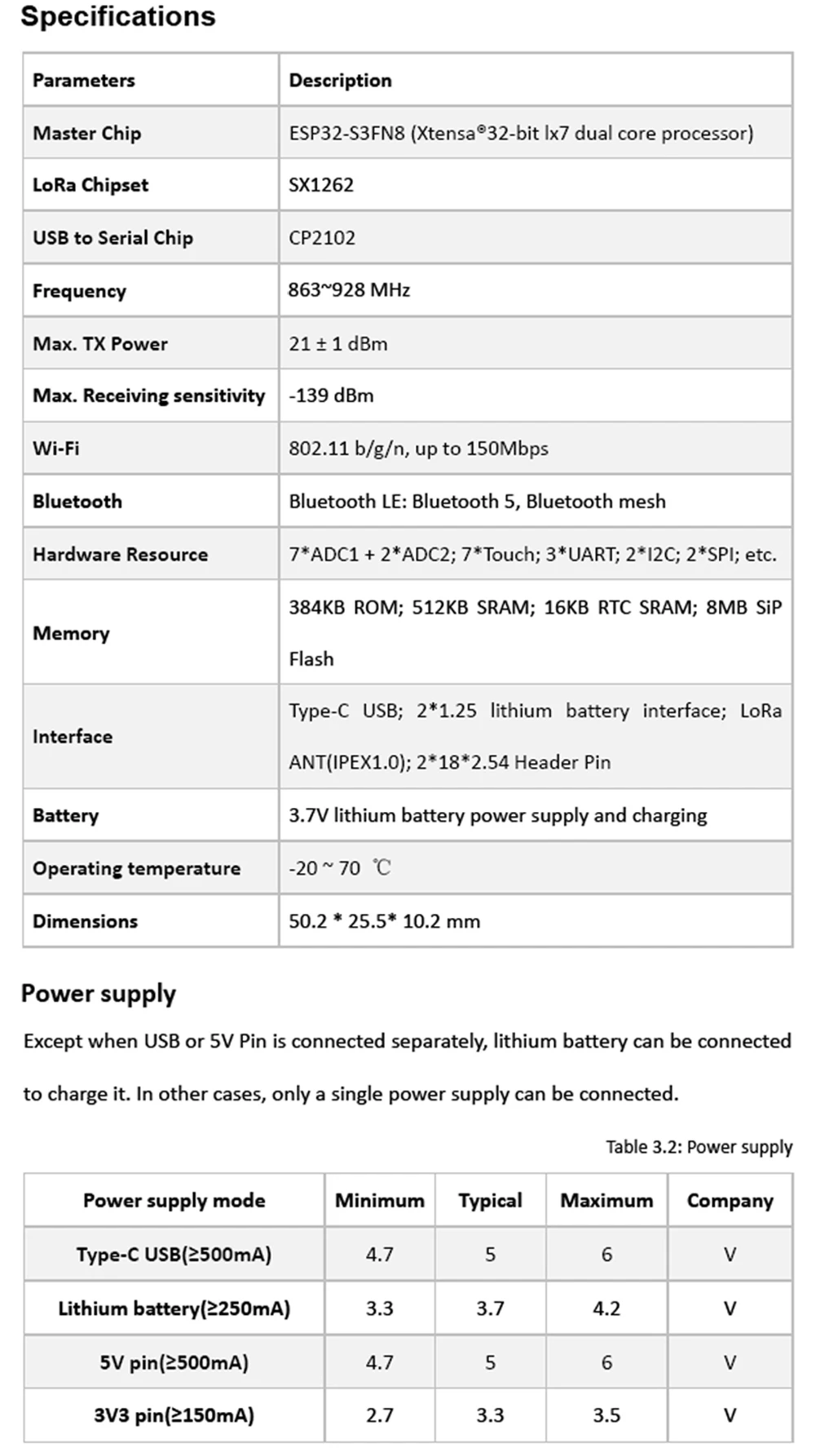

Support frequency: 868-915MHz
Main chip: espressif esp32 and SX1262
Operating voltage: 3.3V to 7V
Flash: 64M-Bits
Lora chip: SX1262
Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth
SKU: FZ2886S
Quantity: 2 Sets
USB Interface: Type-C
Open communication distance: 2.8KM
USB to serial port chip: CP2102
2Sets LoRa32 V3 868MHz 915MHz Development Board SX1262 0.96 Inch OLED Display BT+WIFI Lora Kit for Arduino IOT Smart Home

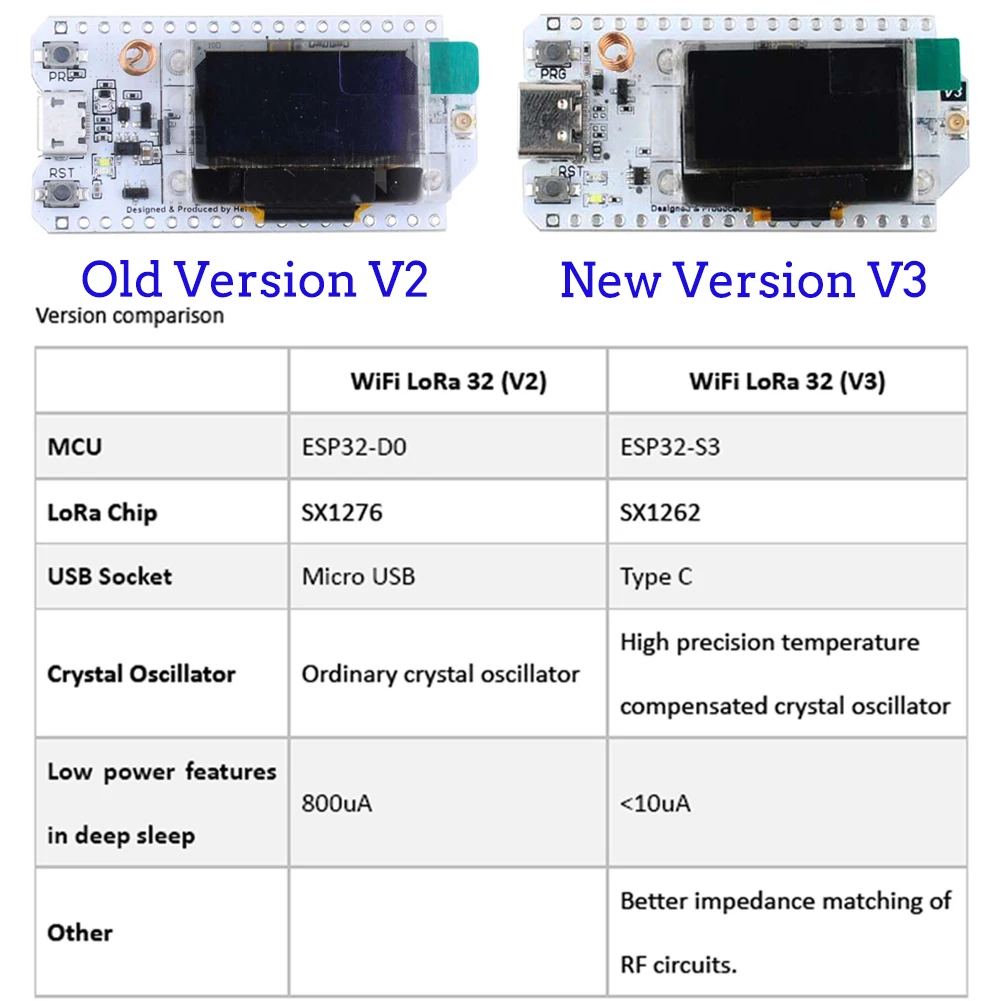

Description: WiFi LoRa 32 is a classic IoT dev-board , it has been loved by developers and makers. The newly launched V3 version has the same pin sequence as the V2 version and retains Wi-Fi, BLE, LoRa, OLED display, and other functions. It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers. Note: Not include battery; Features: - Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz). - SX1262 LoRa node chip. - Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures. - Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching). - Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use. - Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power, and other information. - Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing. - Support the Arduino development environment. - We provide ESP32 + LoRaWAN protocol Arduino® library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed. - With good RF circuit design and low-power design. U.FL IPEX to SMA Connector Antenna 868MHz for Lora Board Lora32u4 II Wifi Lora32 10cm Description:Connector type: ipexBand definition: 868MHzStanding wave ratio: <= 1.5Gain: 2dBiMaximum power: 10WInput impedance: 50?

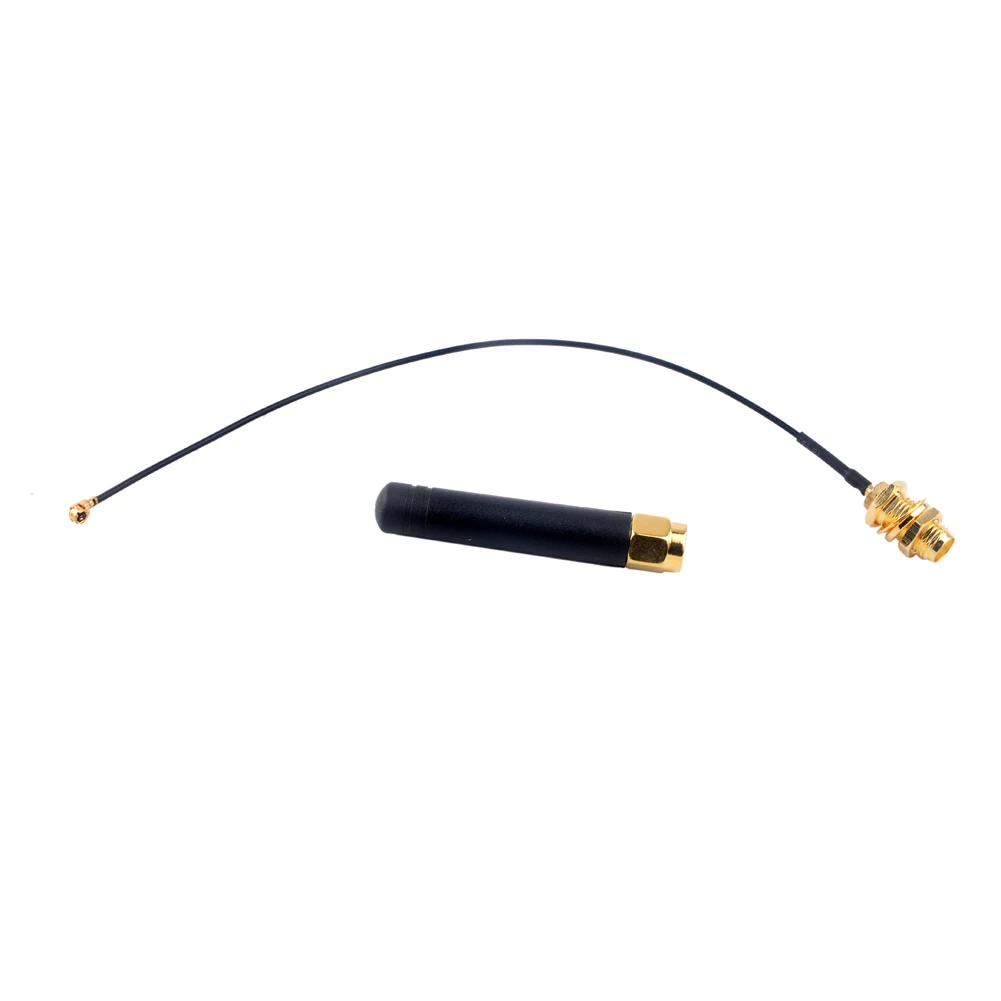

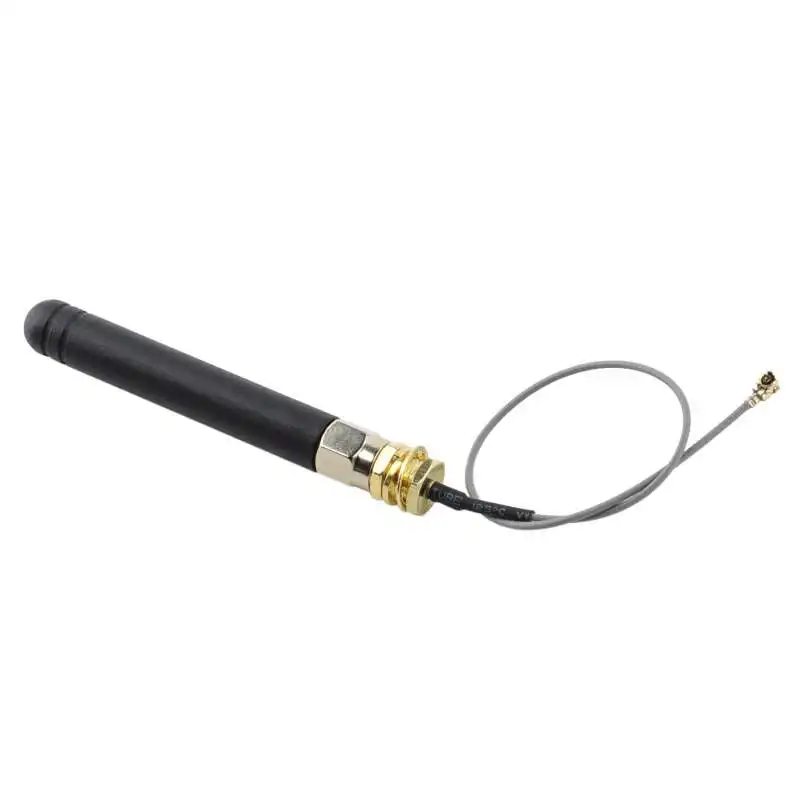

U.FL IPEX to SMA Connector Antenna 915MHz for Lora Board Lora32u4 II Wifi Lora32 10cm Description:Connector type: ipexBand definition: 915MHzStanding wave ratio: <= 1.5Gain: 2dBiMaximum power: 10WInput impedance: 50?
Package Includes:2 X ESP32 Lora V3 OLED development board2 X 868MHz U.FL IPEX to SMA Connector Antenna2 X JST 1.25mm-2P Connector2.54 pin (no welding) OR2 X ESP32 Lora V3 OLED development board2 X 915MHz U.FL IPEX to SMA Connector Antenna2 X JST 1.25mm-2P Connector2.54 pin (no welding) Document Link : https://github.com/HelTecAutomation/Heltec_ESP32
