Placa de Prática de Solda SMD/SMT | Kit de Treinamento com Componentes Eletrônicos – PCB
-
- 1x de R$ 139,00 sem juros
- 2x de R$ 69,50 sem juros
- 3x de R$ 48,20
- 4x de R$ 36,50
- 5x de R$ 29,49
- 6x de R$ 24,82
-
R$ 132,05
Nome da marca: DIY NOW
Origem: CN (Origem)
Químico Hign-em causa: Nenhum
Condição: novo
Tipo: Módulo
Tensão de alimentação: As Description
Cutomizado: Sim
Quantidade: 1
Aplicação: brinquedo elétrico
Pacote: TQFP
Condition: New
Type: SMT LED Module
Key Word: PCB Welding Practice Kit
Dropship: Support

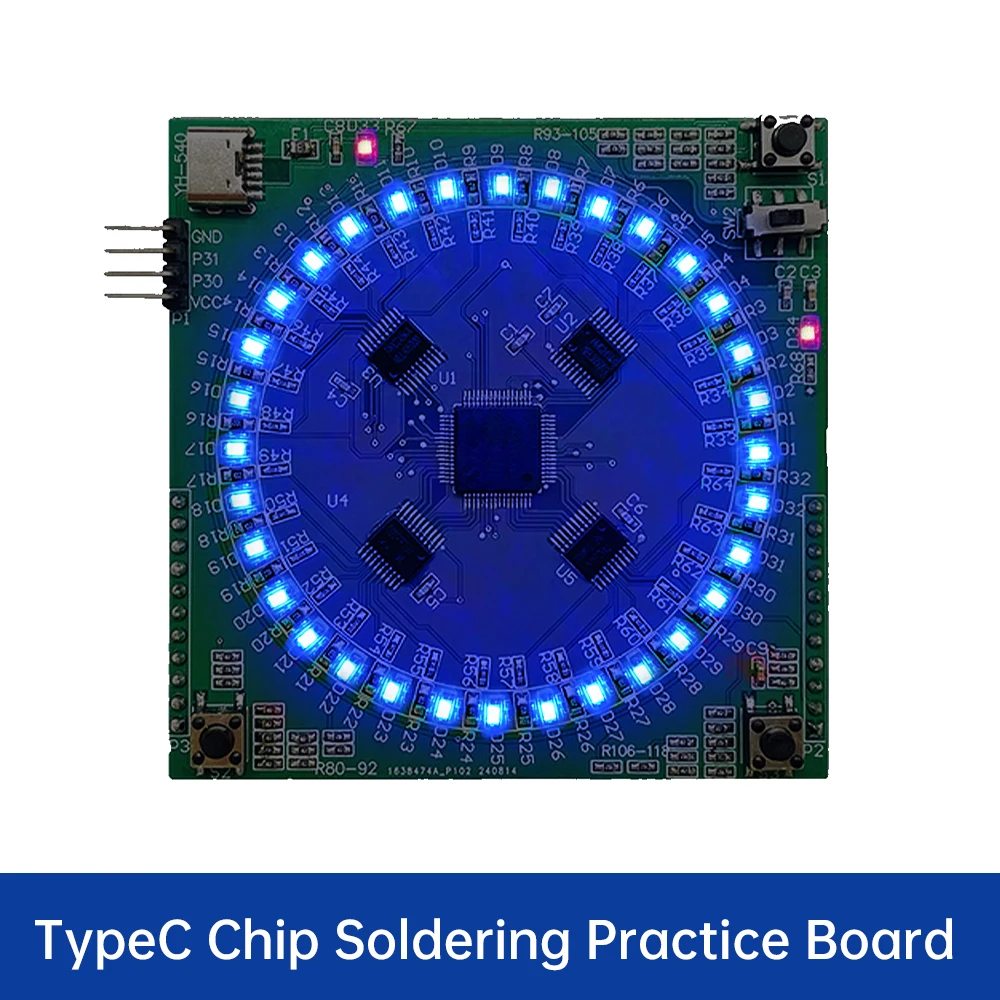

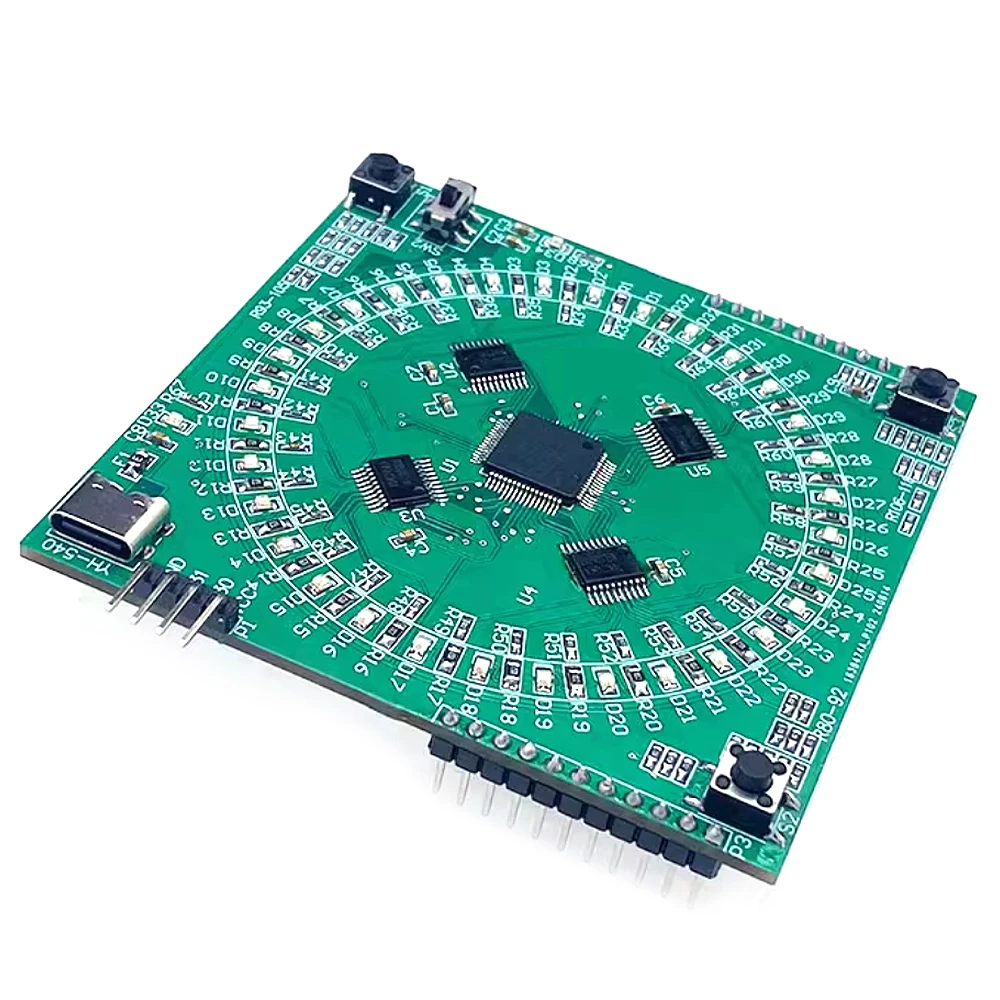

SMD Patch Welding Practice Board SMT Skills Training PCB Welding Practice Electronic Component Kit
Feature:
1. Suitable for electronic technology foundation and skill teaching and training.
2. Improve welding level and speed, suitable for DIY enthusiasts.
3. Stable performance, long service life, ensure quality of use.
4. Contains a full set of components and drawings, convenient for customers to weld and install by themselves.
5. Supports C interface and serial port burning code, strong scalability.
Product Introduction:

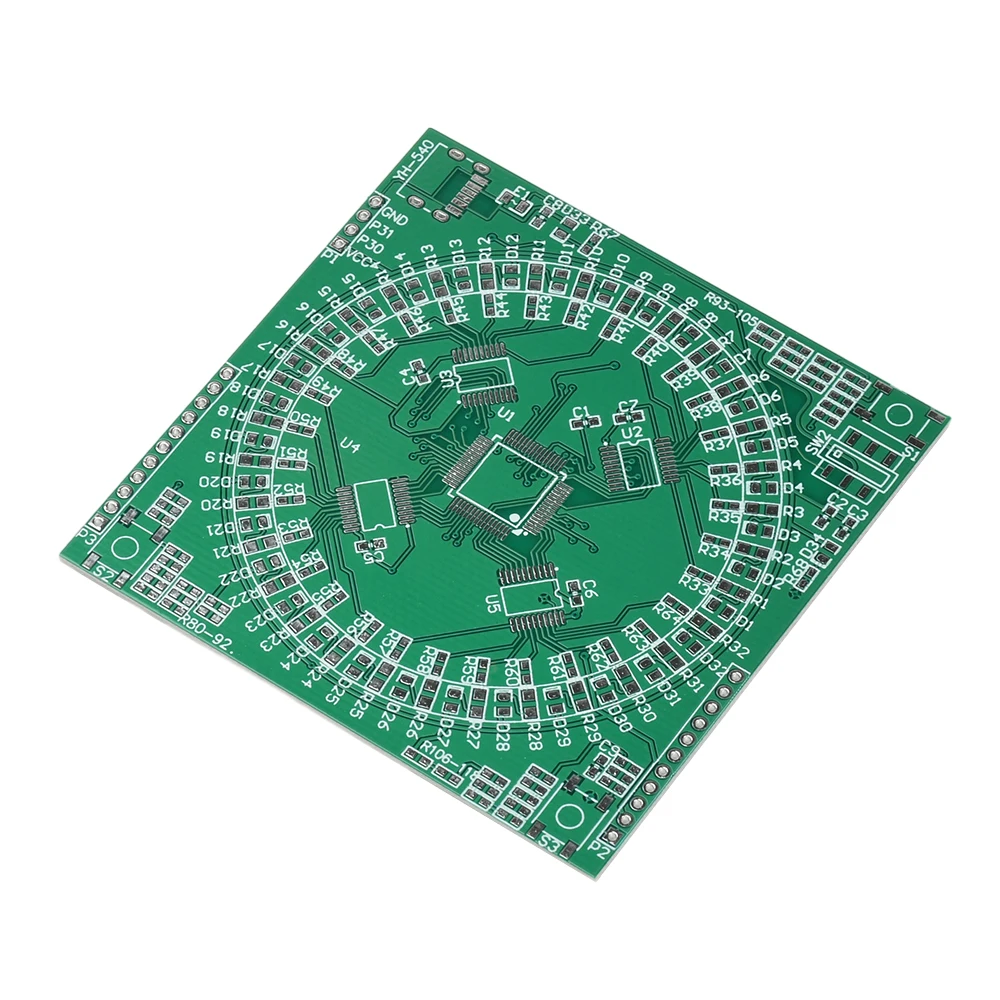

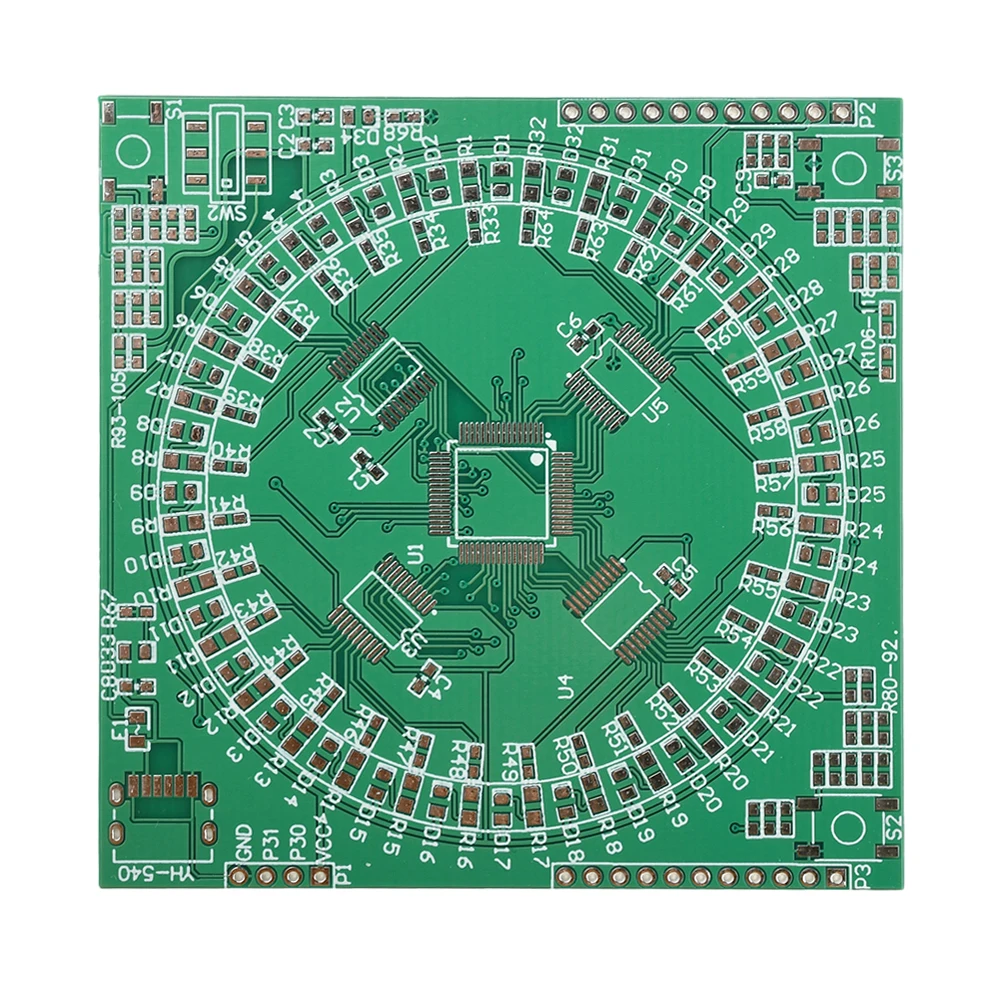

This kit can be used for electronic technology foundation and skill teaching and training, electronic skill teaching, electronic process teaching, digital circuit teaching, electronic enthusiasts, and beginners. The kit contains a full set of components, circuit boards, supporting drawings, and component lists. (Note: The kit is not a finished product, and customers need to weld and install it by themselves!)
Product parameters:
Interface: Type C interface
Power supply voltage: 5V

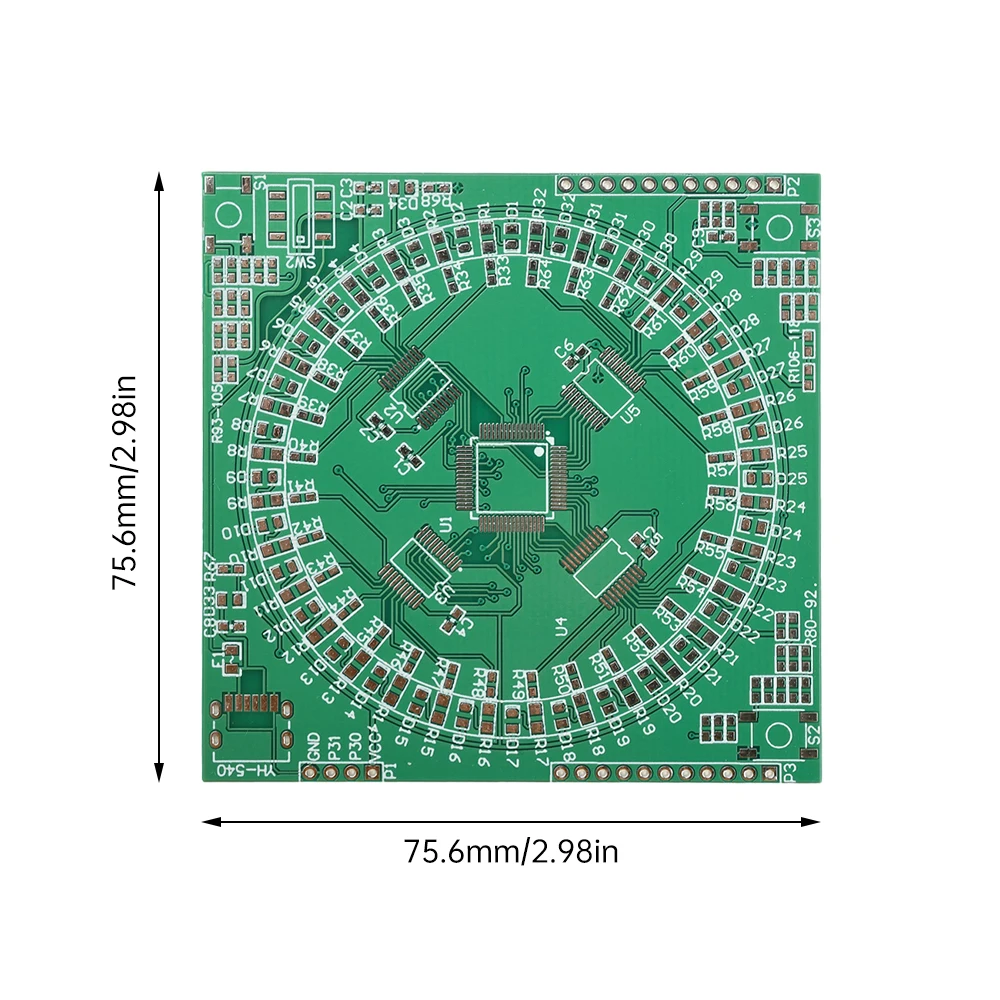

Product size: 75*75mm
Welding instructions:

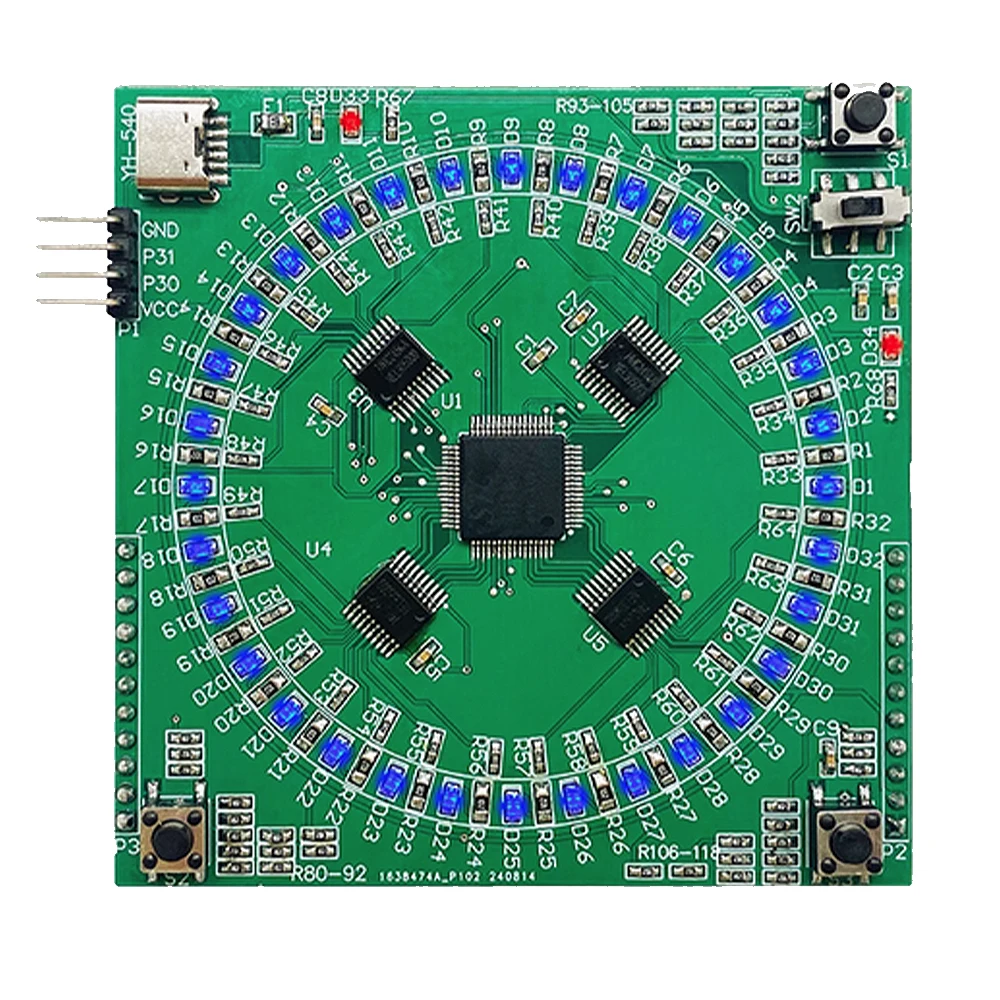

1. LED and chip have direction. LED identifies cathode, chip identifies pin
2. Capacitors, resistors, fuses, switches have no direction, pay attention to distinguish parameters, don't make mistakes
3. TYPE-C port welding is difficult, you can use pin headers to power 5V, first check other circuits
4. The holes on both sides are for later expansion of LED dot matrix modules,
5. If you burn the code yourself, you can use the C interface or the serial port, pay attention to the operating procedures

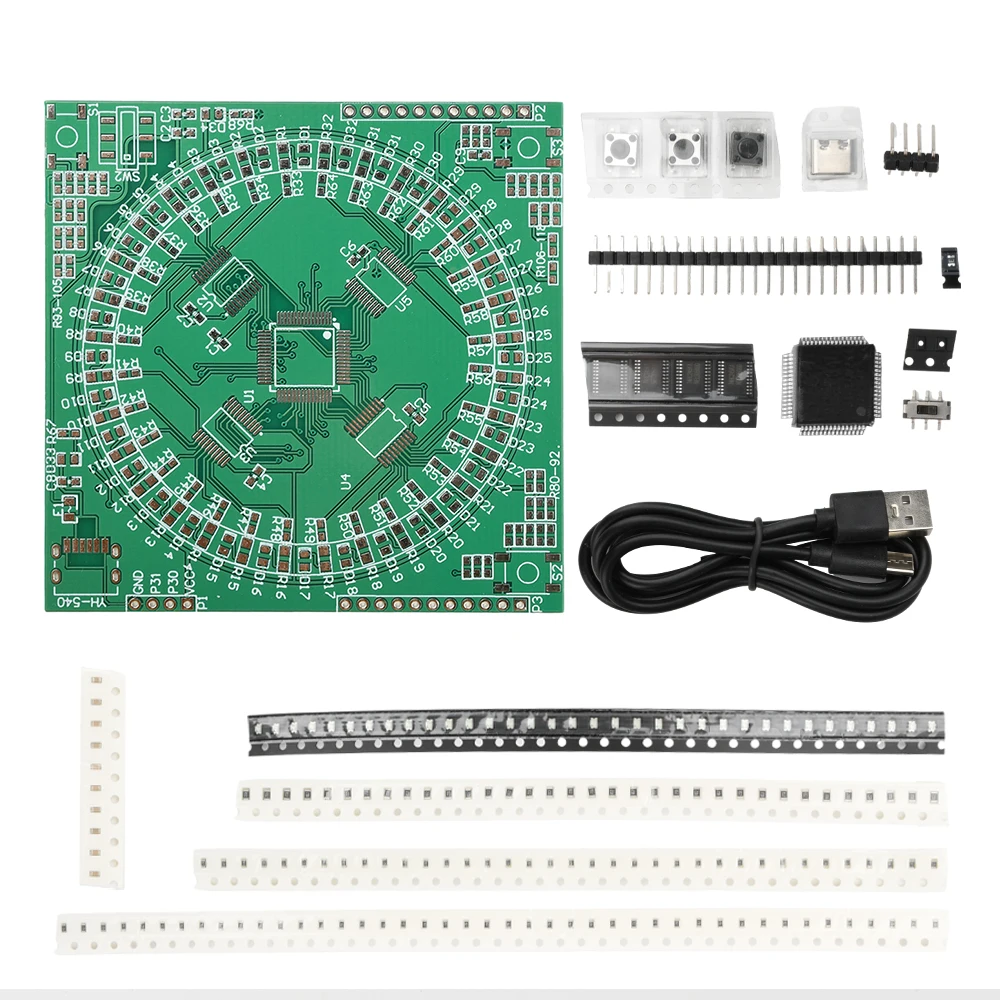

Package list:

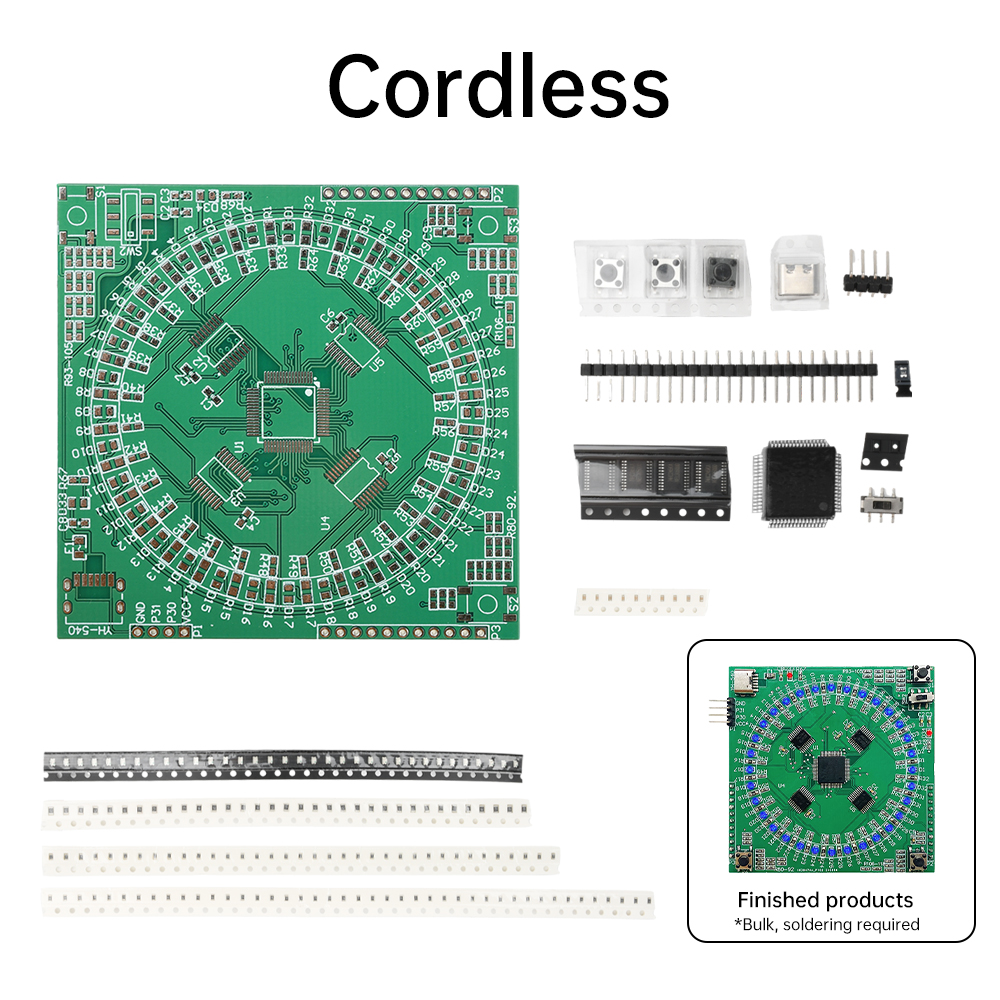

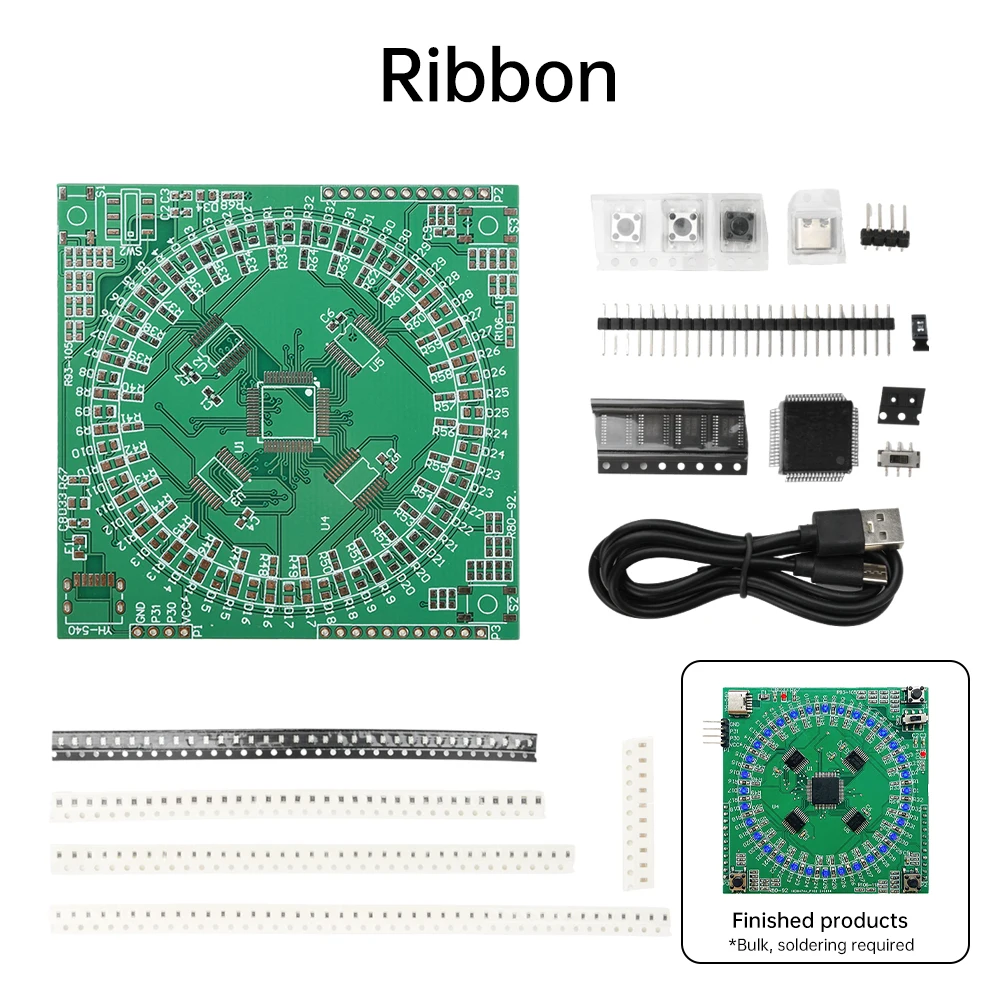

DIY kit parts X1
