Módulo VTX/VRX 1.3GHz 1000mW 16 Canais – 1120~1360MHz para Drone RC de Longo Alcance

Nome da marca: DIY NOW

Origem: CN (Origem)

Químico Hign-em causa: Nenhum

Condição: novo

Tipo: Módulo

Tensão de alimentação: As Description

Cutomizado: Sim

Quantidade: 1

Temperatura operacional: As Description

Aplicação: brinquedo elétrico

Pacote: SOP

Condition: New

Type: Transmitter

Key Word: Video Transmitter

Dropship: Support

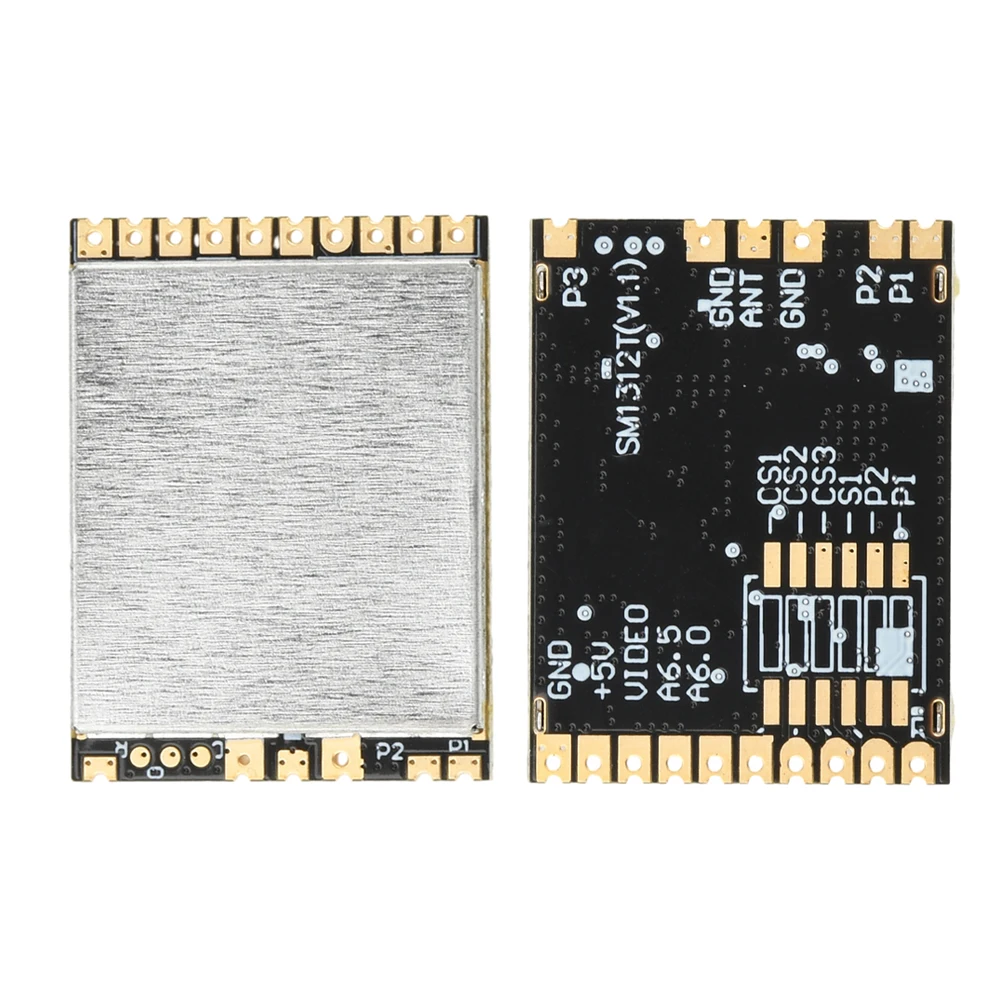

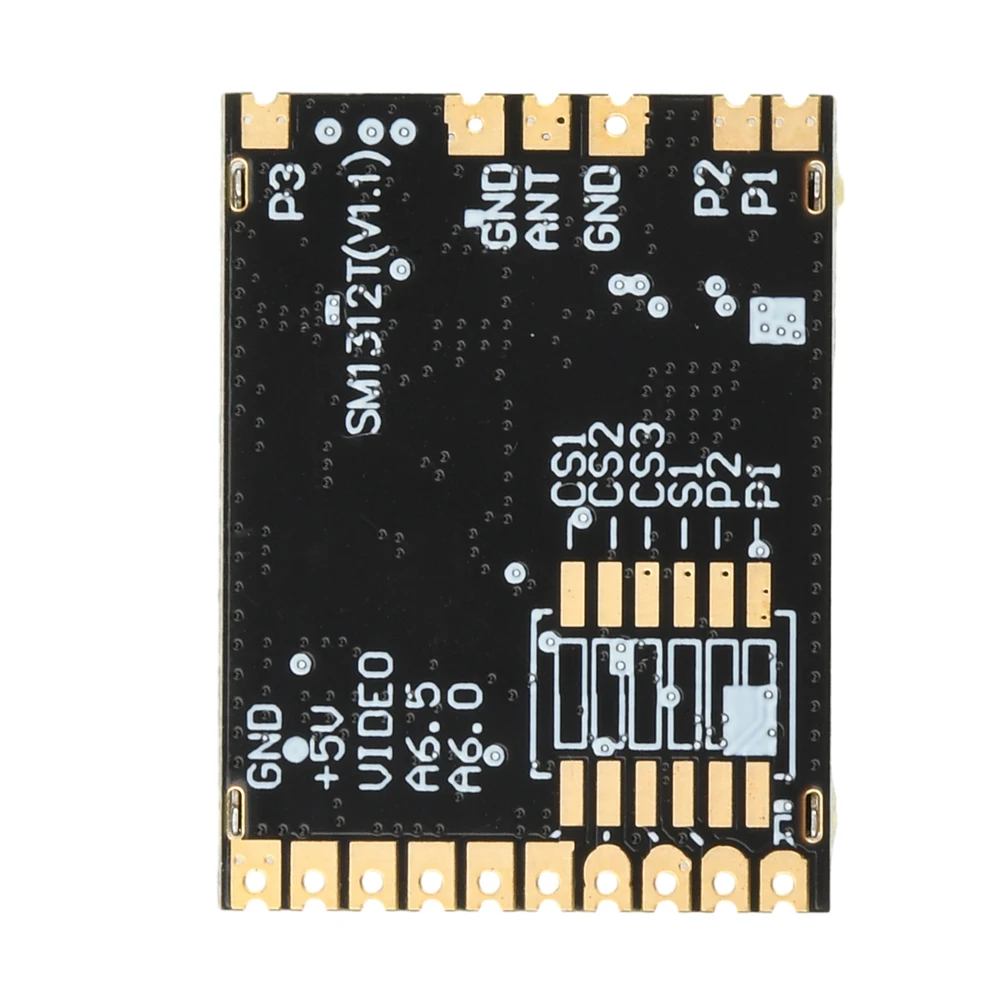

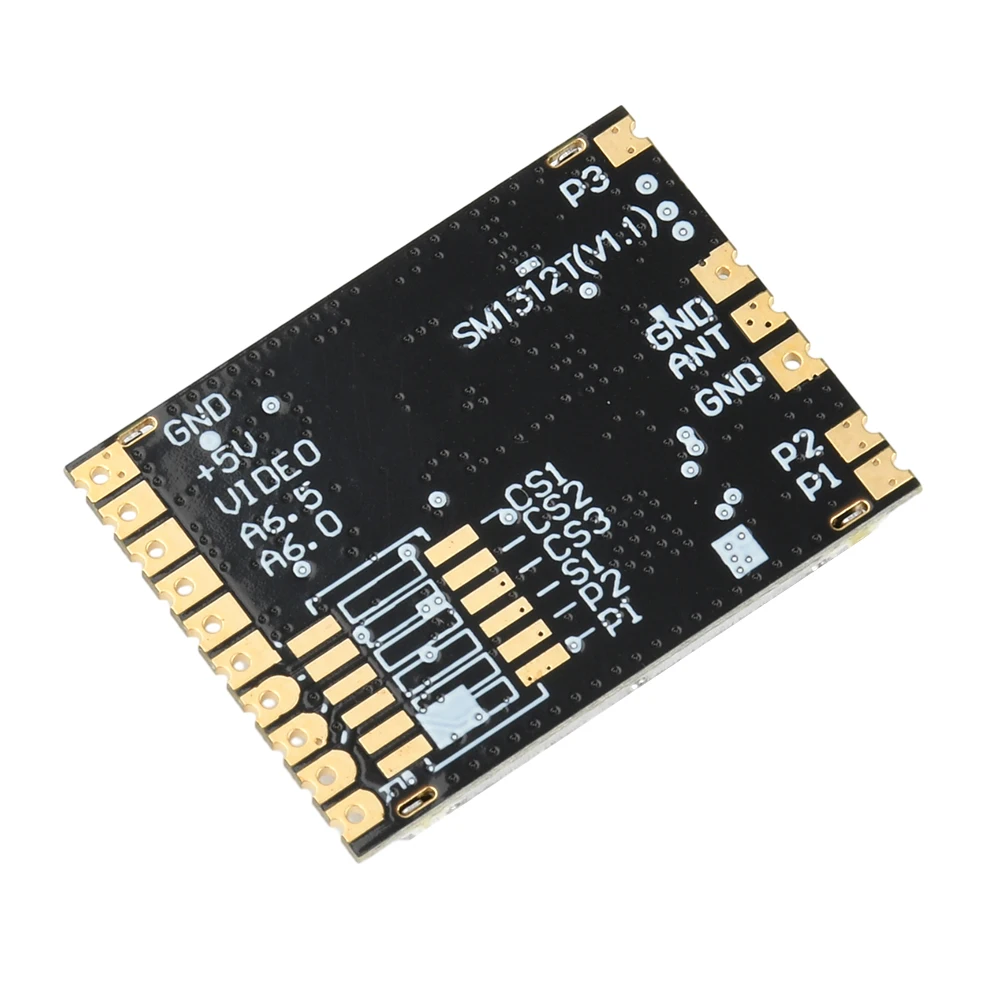

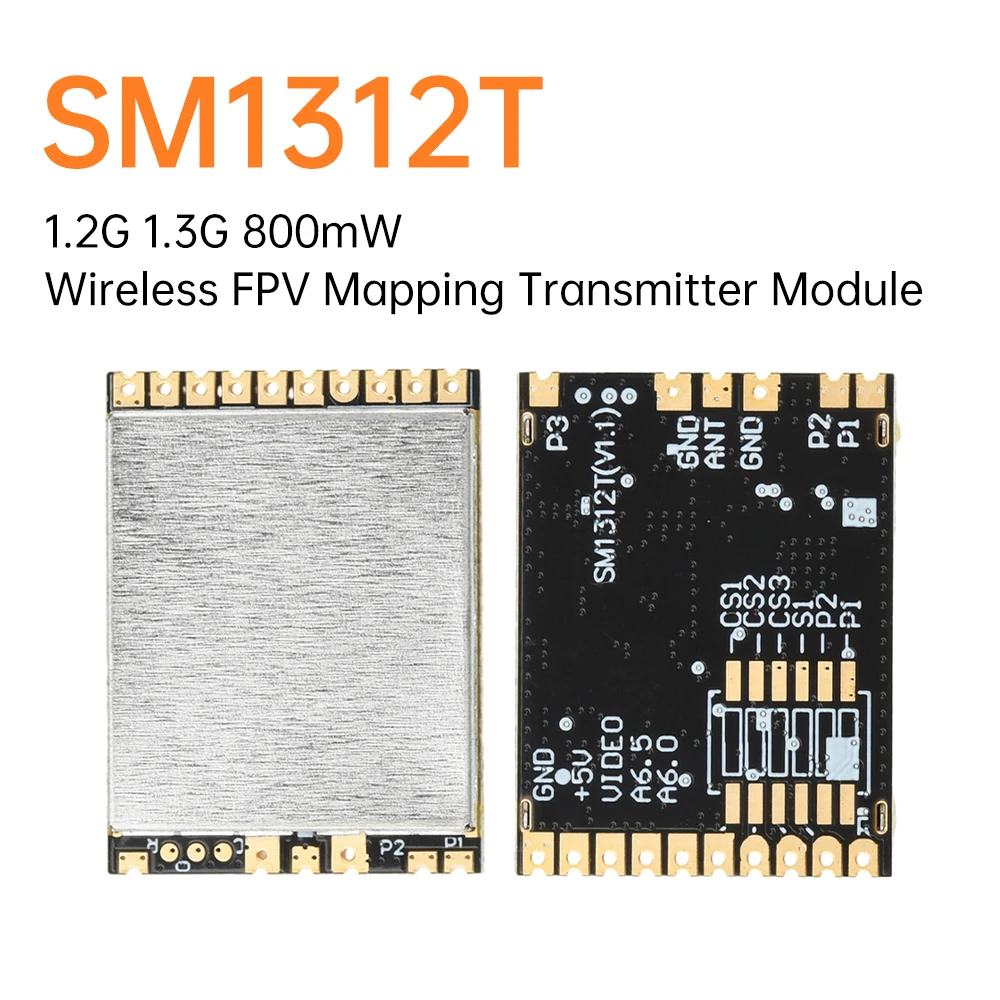

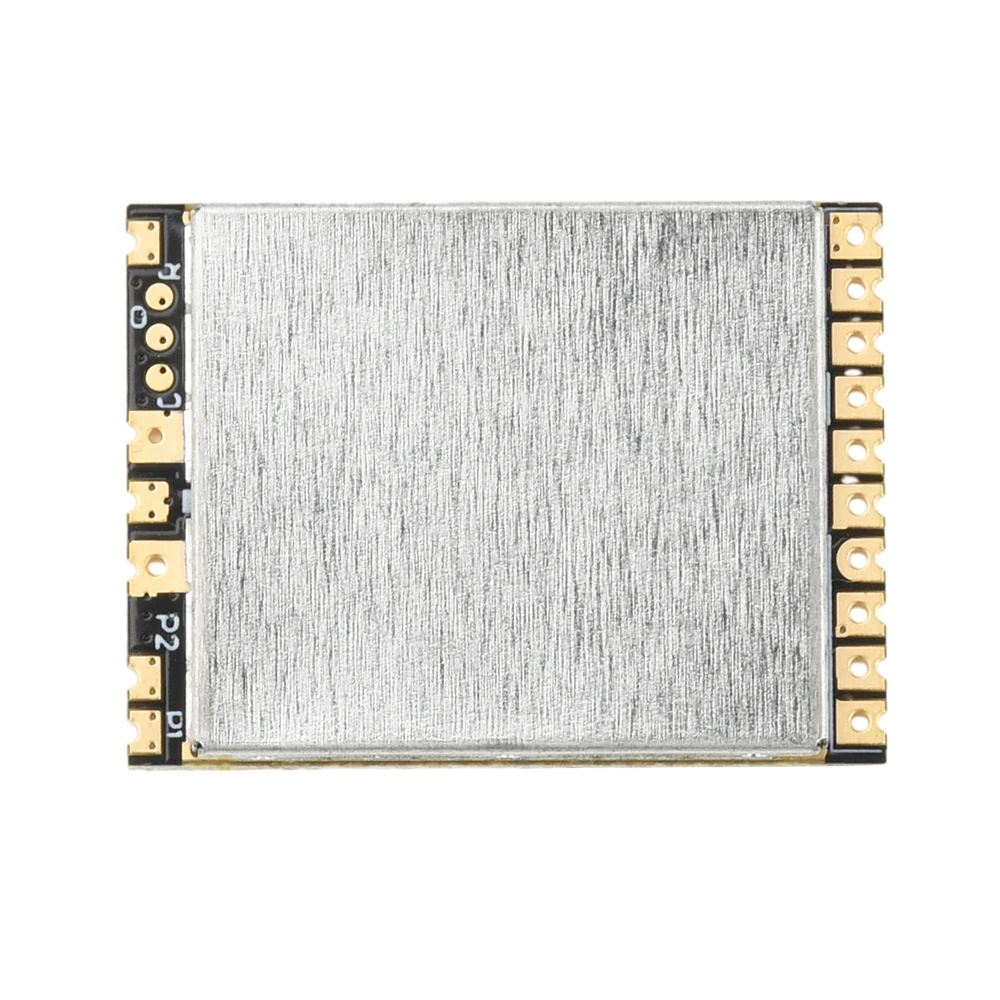

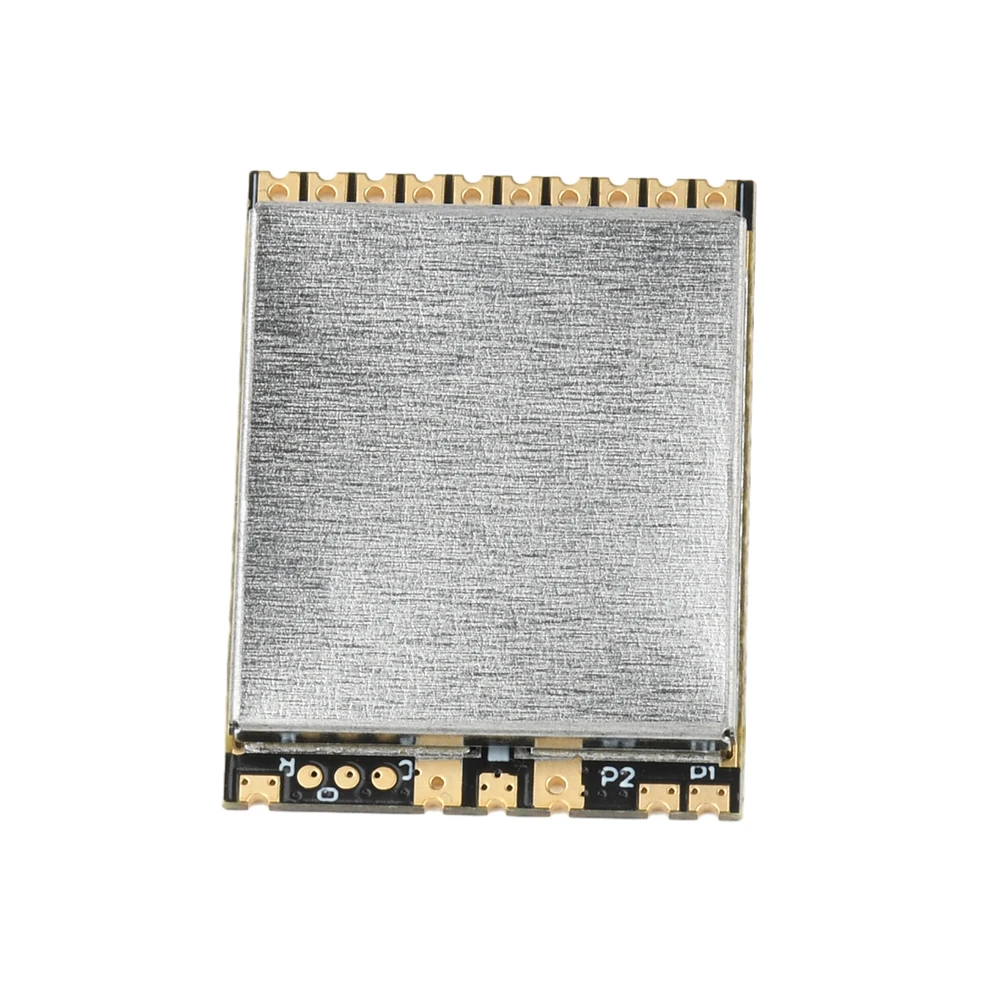

1120~1360MHZ VTX VRX 1000mW Video Transmitter/Receiver Module 16CH 3.7-5V For Long Range RC Drone 1G3 1G3SE

Feature:

1. Wide coverage of high frequency band: supports 1120~1360MHz frequency band, 16 channels are optional, meeting diverse wireless transmission needs.

2. High power output: maximum 800mW transmission power, strong signal, long transmission distance, and superior performance.

3. Precise frequency control: adopts PLL technology to ensure clear and stable signal, suitable for drones or FPV equipment.

4. Multi-standard compatibility: supports NTSC/PAL video input, adapts to different devices, and has a wide range of applications.

5. Compact design: The appearance design is thin and compact, easy to integrate and carry.

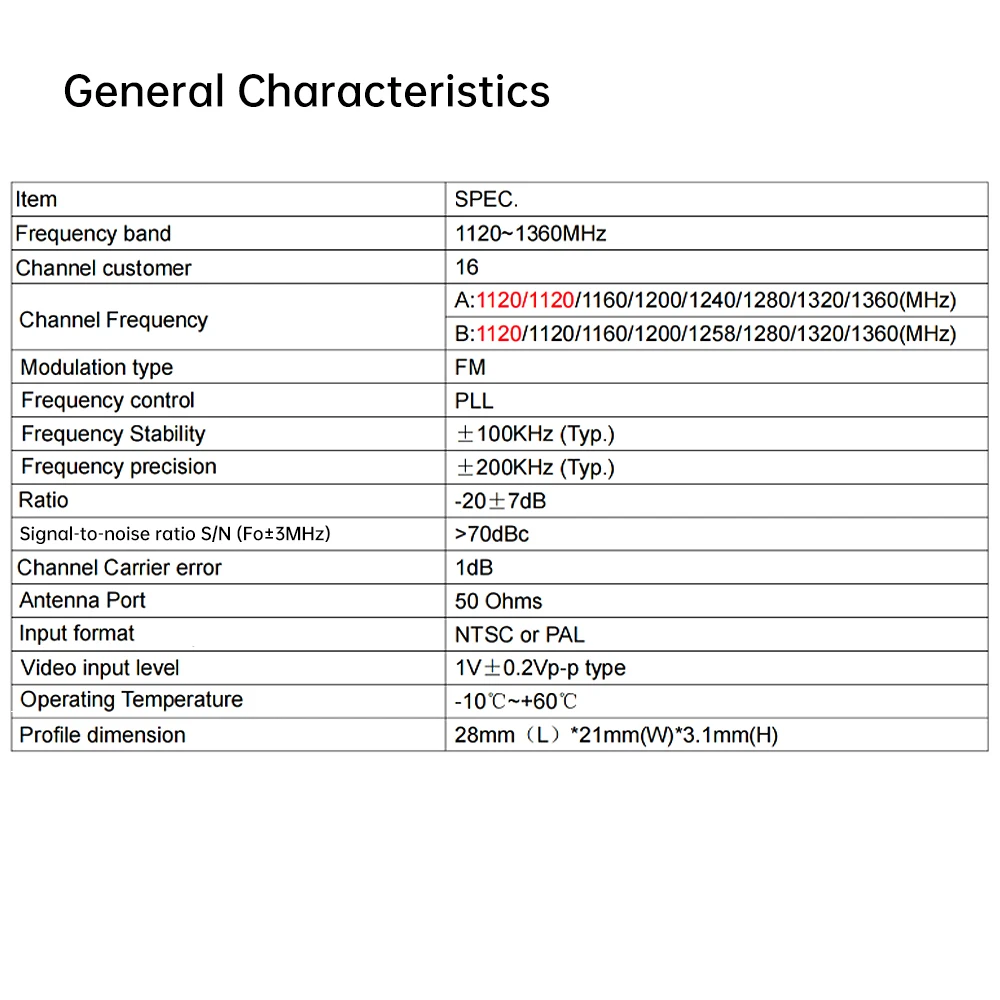

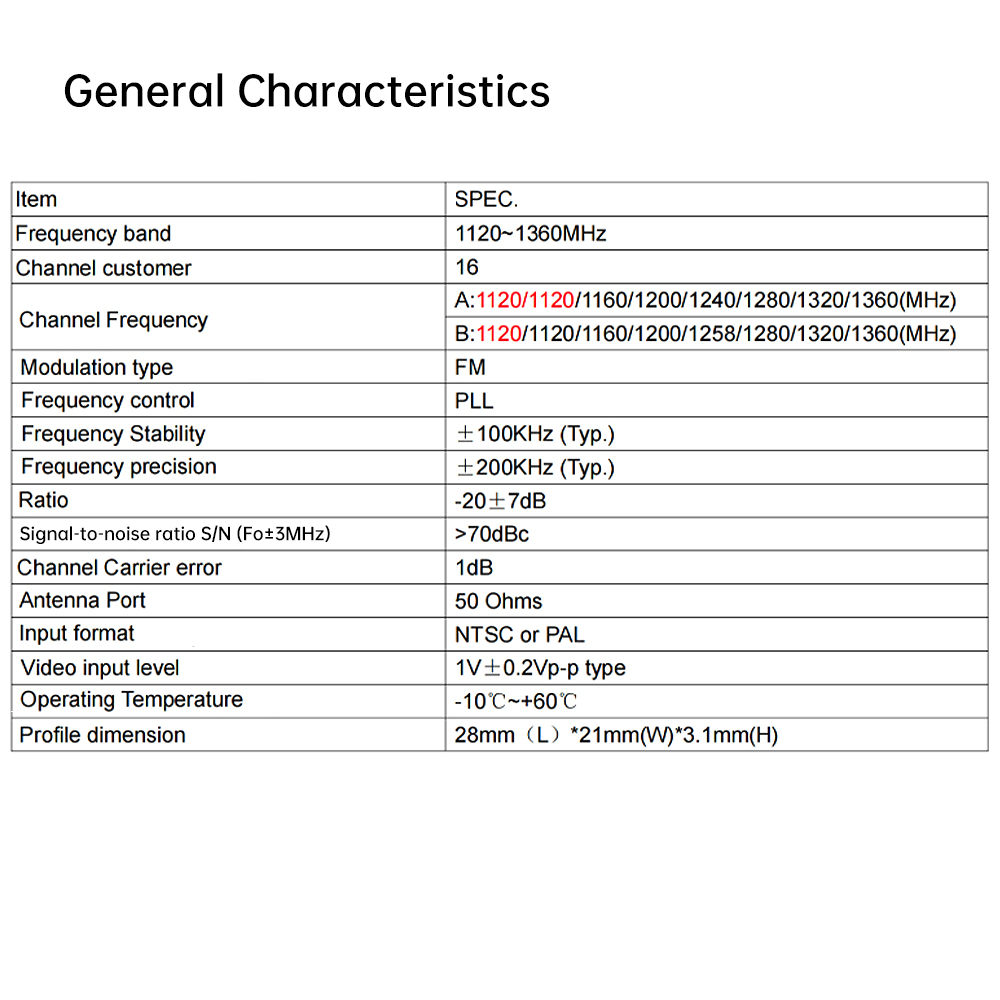

Parameters:

Frequency band: 1120~1360MHZ

Channel customer: 16

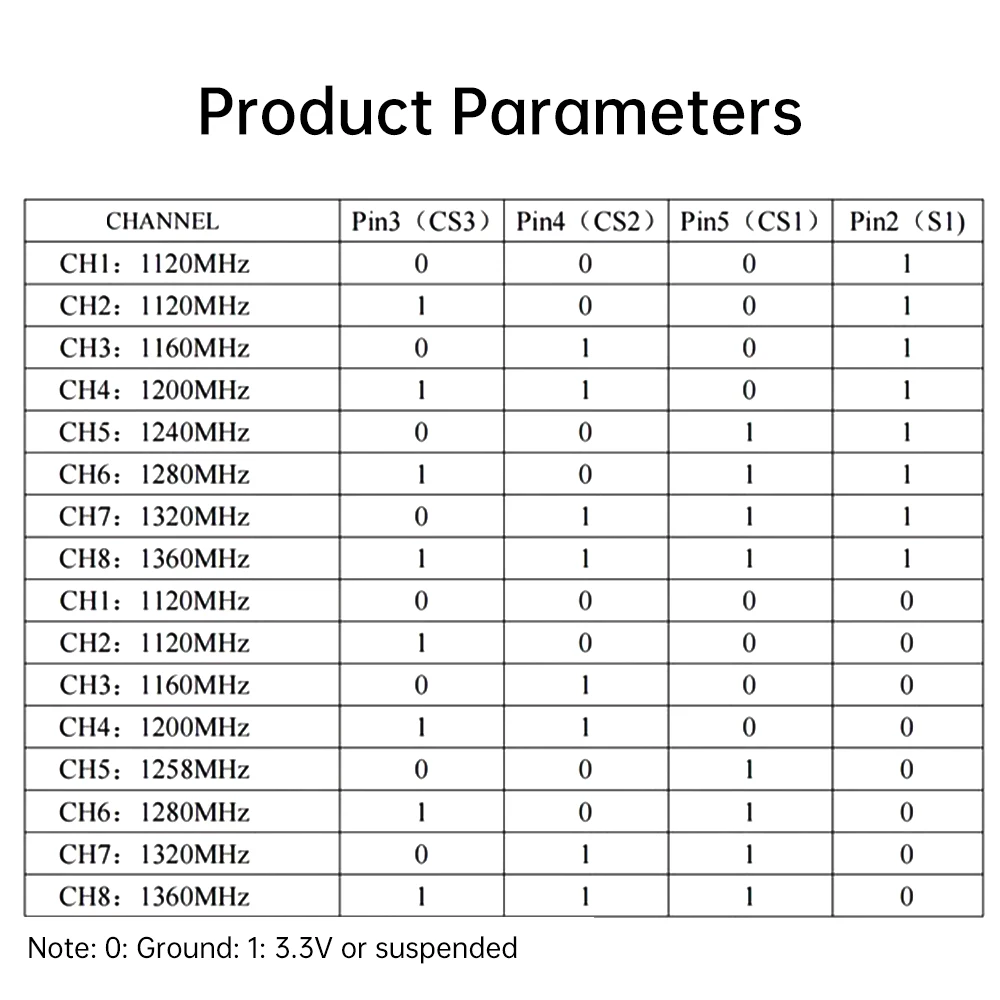

Channel frequency:

A: 1120/112011160/1200/1240/1280/13201360(MHz)

B: 1120/112011160/120011258/12801132011360(MHz)

Modulation type: FM

Frequency control: PLL

Frequency stability: ±100KHz(TyP.)

Frequency precision: ±200KHz(Typ.)

AN ratio: -20+7dB

Signal to noise ratio S/N (Fo±3MHz): >70dBc

ChannelCarrier error: 1dB

Antenna port impedance: 50 Ohms

Input format: NTSC Or PAL

Video input level: 1V±0.2Vp-p type

Operating temperature: -10?~+60?

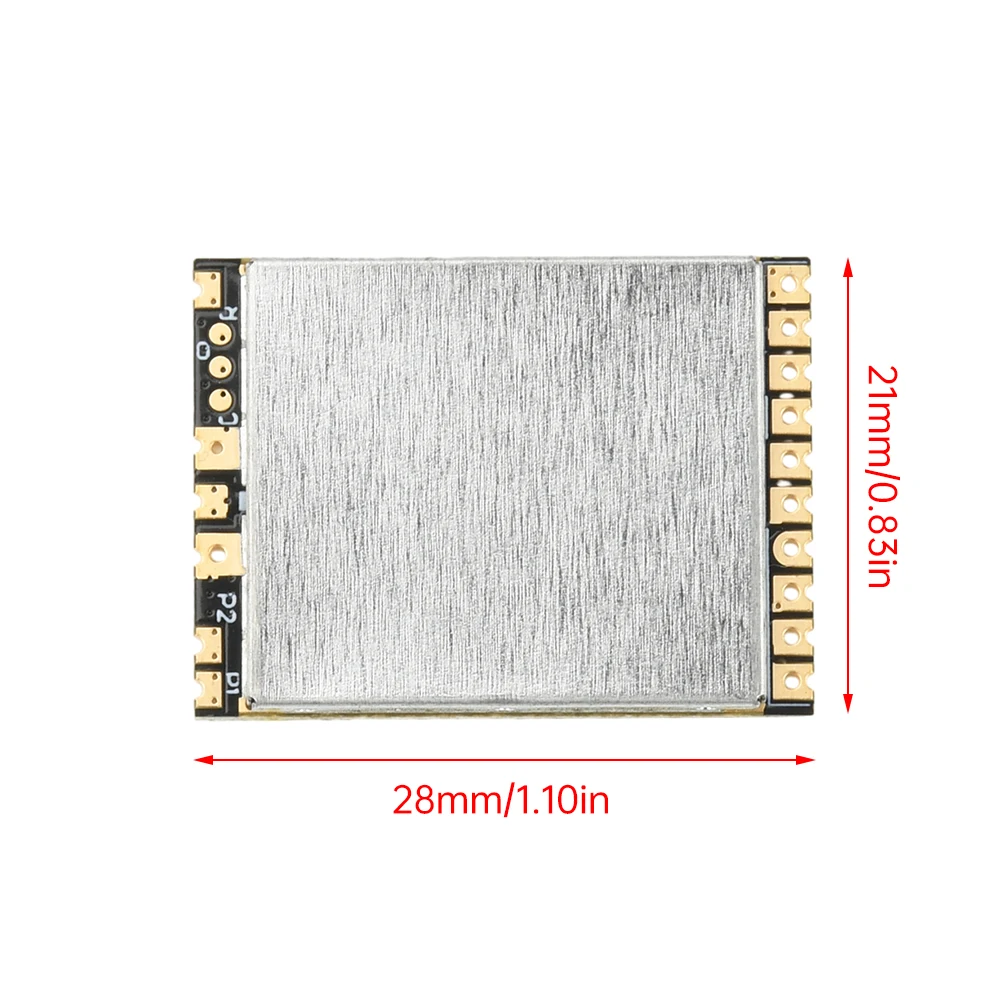

Profile dimension: 28mm(L)*21mm(w)*3.1mm(H)

Product list:

1X module
