Nome da marca: HengPoplar
Número do modelo: esp32 touch screen lcd
Origem: CN (Origem)
Features
Highly integrated ESP32-S3r8 Soc with low power consumption
2.8-inch 240x320 touch screen LCD display for easy interactions
Wireless connectivity with Wi-Fi and BLE
Support rapid prototyping
Provide open-source SDK based on ESP-IDF and Arduino
Description

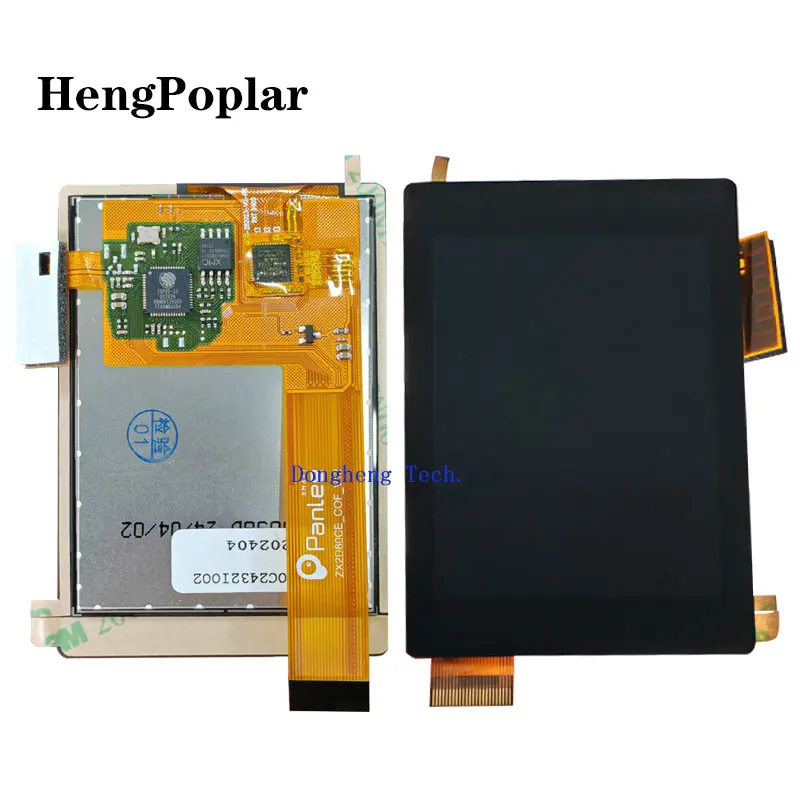

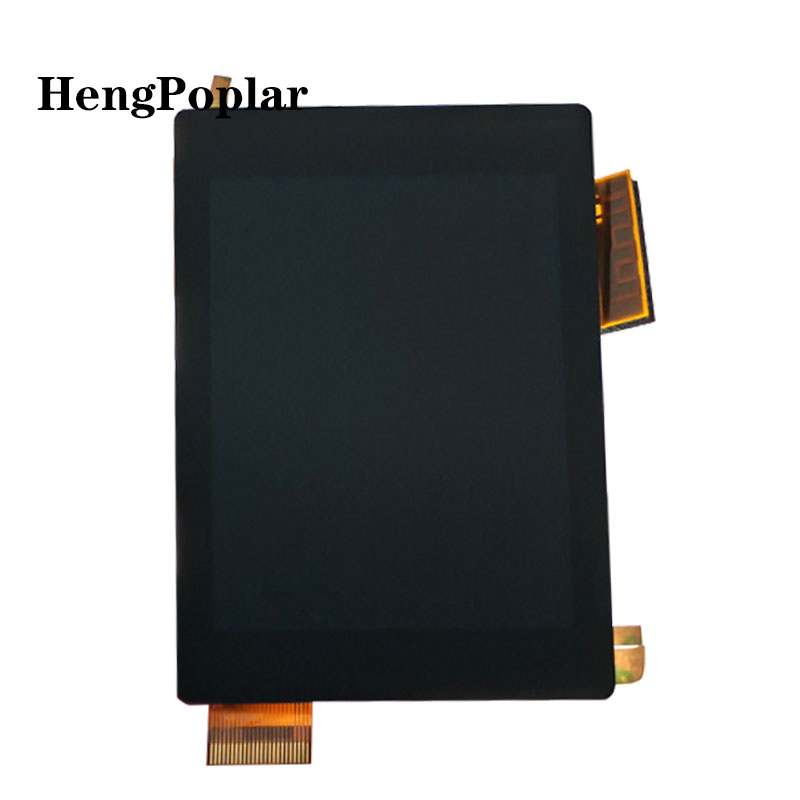

SC05 is a 2.8-inch 240x320 color touch LCD screen that integrates ESP32-S3R8 SoC. The touch screen adopts COF (Chip on Flex) technology, which integrates the touch screen controller with a flexible circuit board (FPC), greatly improving the sensitivity and accuracy of touch.
?In terms of hardware, this serial screen is equipped with an advanced ESP32-S3R8 chip combined with 16MB Flash, ensuring excellent performance in data processing and storage capabilities of the device. This powerful configuration provides users with a smooth and stable operating experience, and can meet the needs of various complex applications.

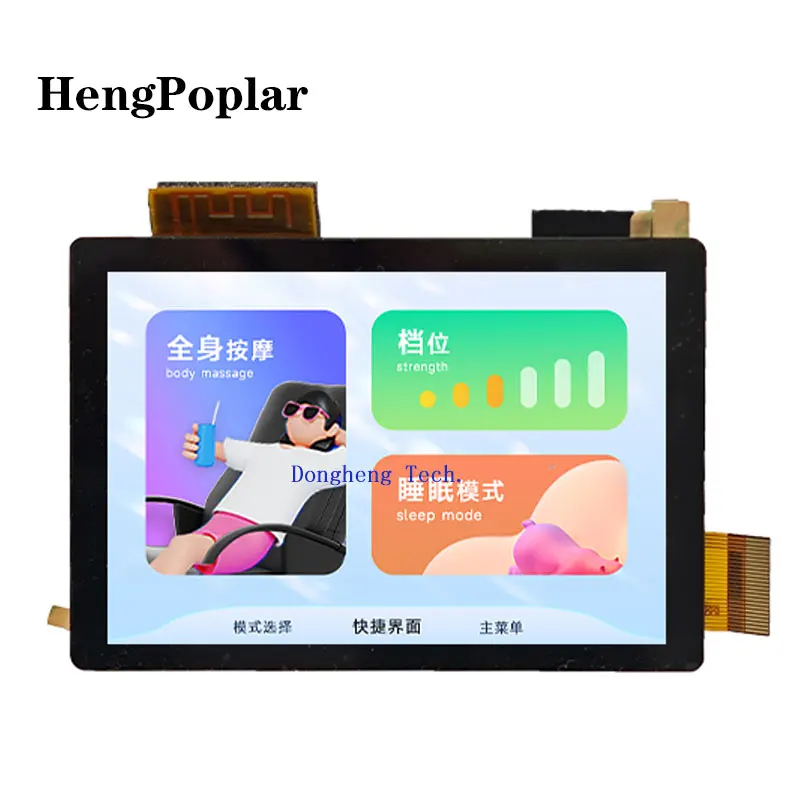

In terms of display effect, the application of 2.8-inch IPS full fit technology makes the screen present clear and delicate image quality. The resolution of up to 240 * 320 provides users with a realistic visual experience, enabling precise and delicate display of both text and images.
The solution is often used in smart products such as bicycle computer meters, energy storage charging equipment, air fryers, water heaters, washing machines, ovens and various applications that require LCD displays, and is often used as the first choice for upgrading the traditional segment code screen or black and white screen solutions.

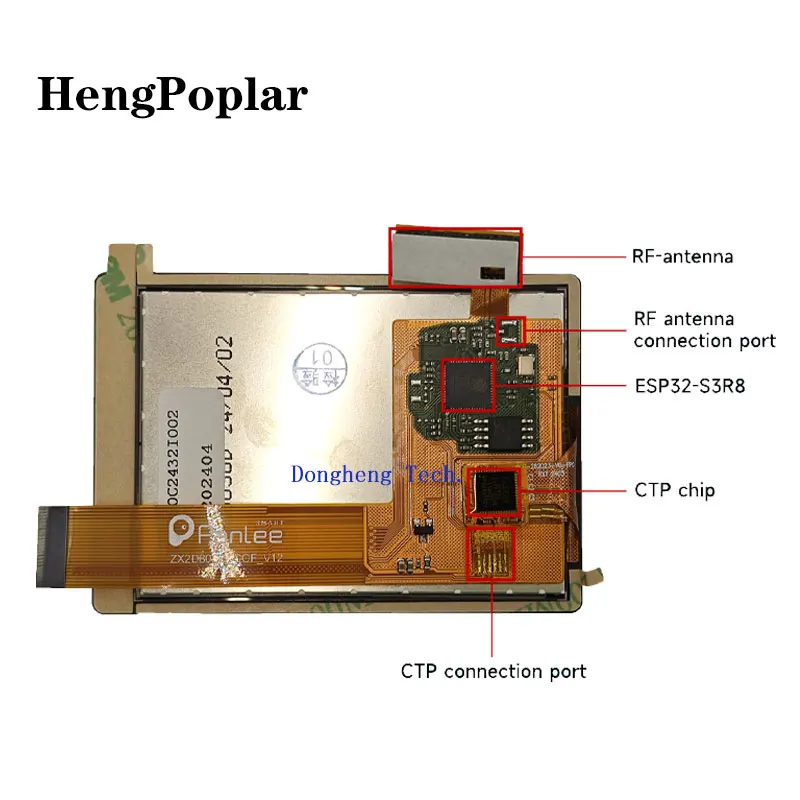

ESP32-S3R8 Soc
RF-antenna
RF antennaconnection port
CTP chip
CTP connection port
