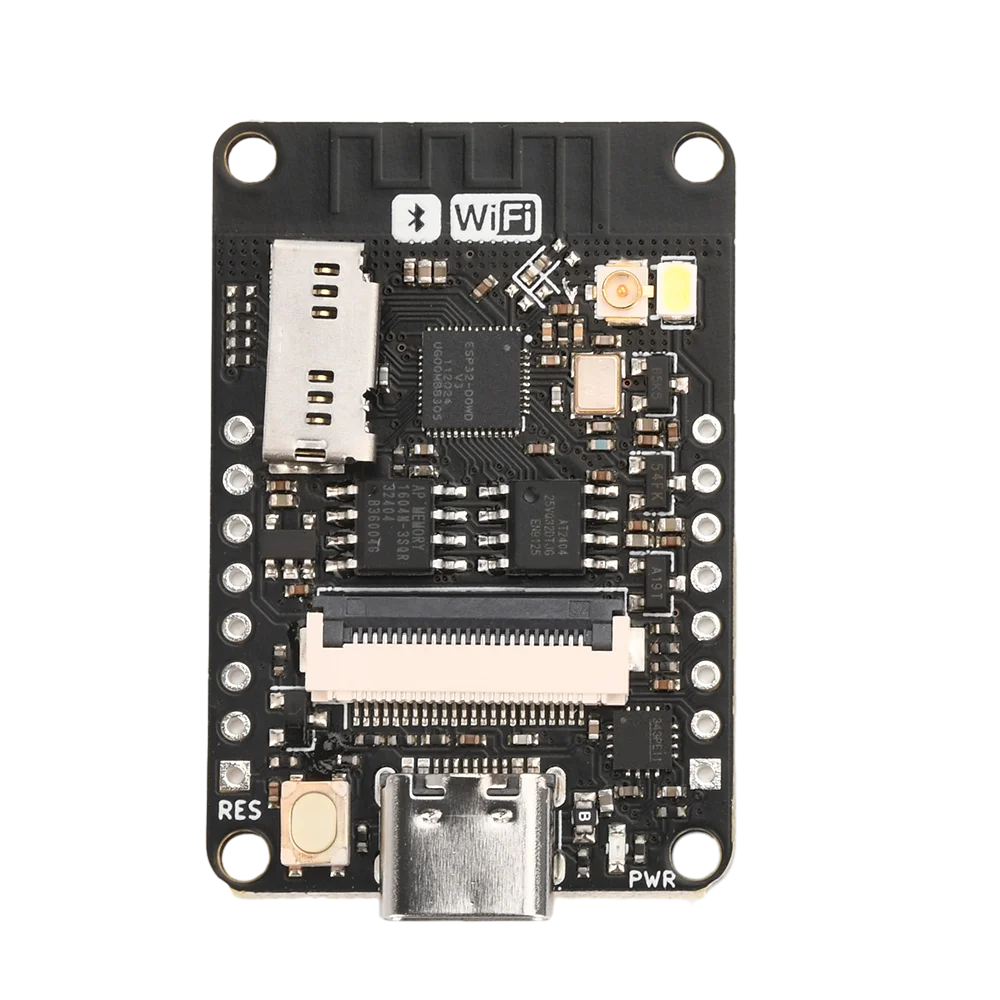

ESP32-CAM V3 com Câmera OV2640 – Placa de Desenvolvimento WiFi Bluetooth Tipo-C Serial
-
- 1x de R$ 289,00 sem juros
- 2x de R$ 144,50 sem juros
- 3x de R$ 100,21
- 4x de R$ 75,90
- 5x de R$ 61,31
- 6x de R$ 51,59
-
R$ 274,55
Nome da marca: Gaqqee
Origem: CN (Origem)
Químico Hign-em causa: Nenhum
Condição: novo
Tipo: REGULADOR DE TENSÃO
Tensão de alimentação: As Description
Potência de dissipação: As Description
Cutomizado: Sim
Temperatura operacional: As Description
Quantidade: 1
Aplicação: Câmera
Pacote: SMD
Condition : New
Type : ESP Module
Key Word : Camera Module
Dropship : Support

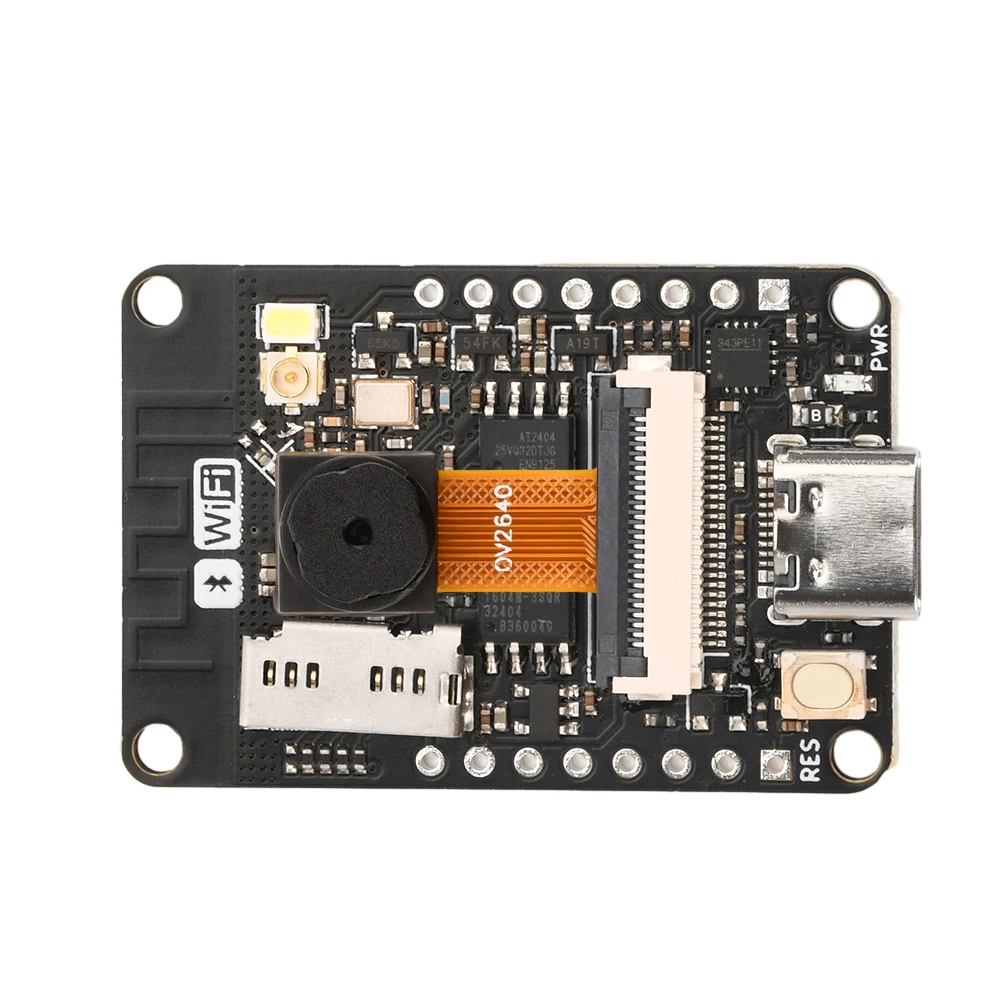

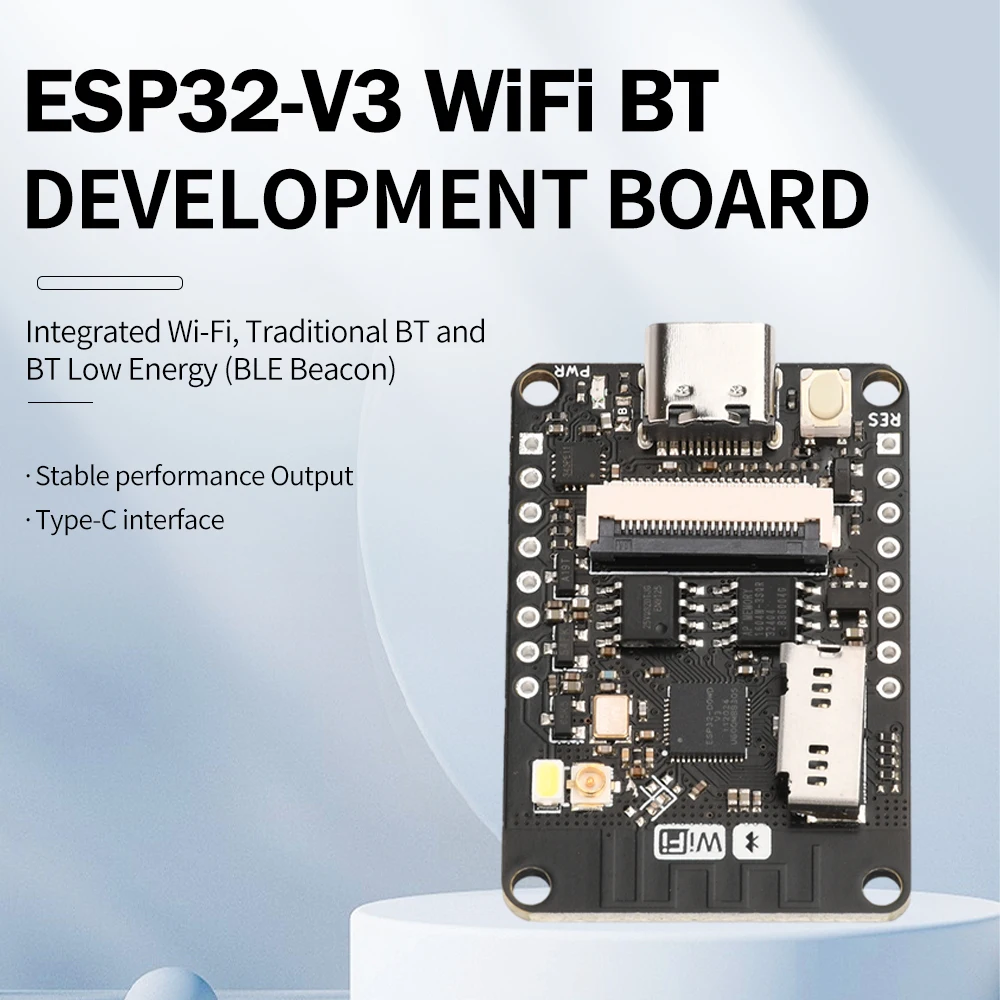

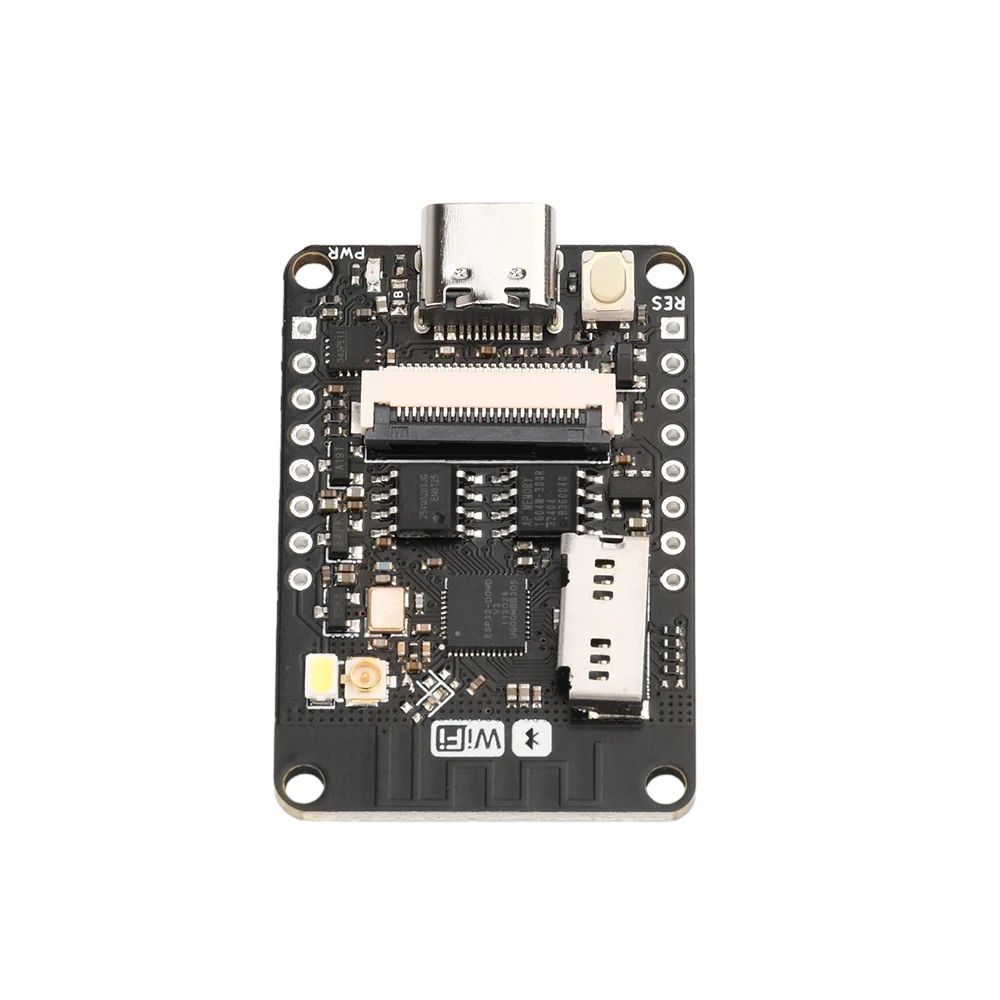

Type-c ESP32 Serial to WiFi ESP32 CAM Development Board V3 Bluetooth-Compatible+OV2640 Camera Electronic Compoent Kit
Feature:
1. The product is beautifully designed, the welding place is designed flat, the welding place is flat and flawless, showing the exquisite craftsmanship, providing a stable and reliable solution for your project.
2. The PCB onboard antenna is adopted, and the core adopts the module developed based on the ESP32 chip, which can work independently as a minimum system.

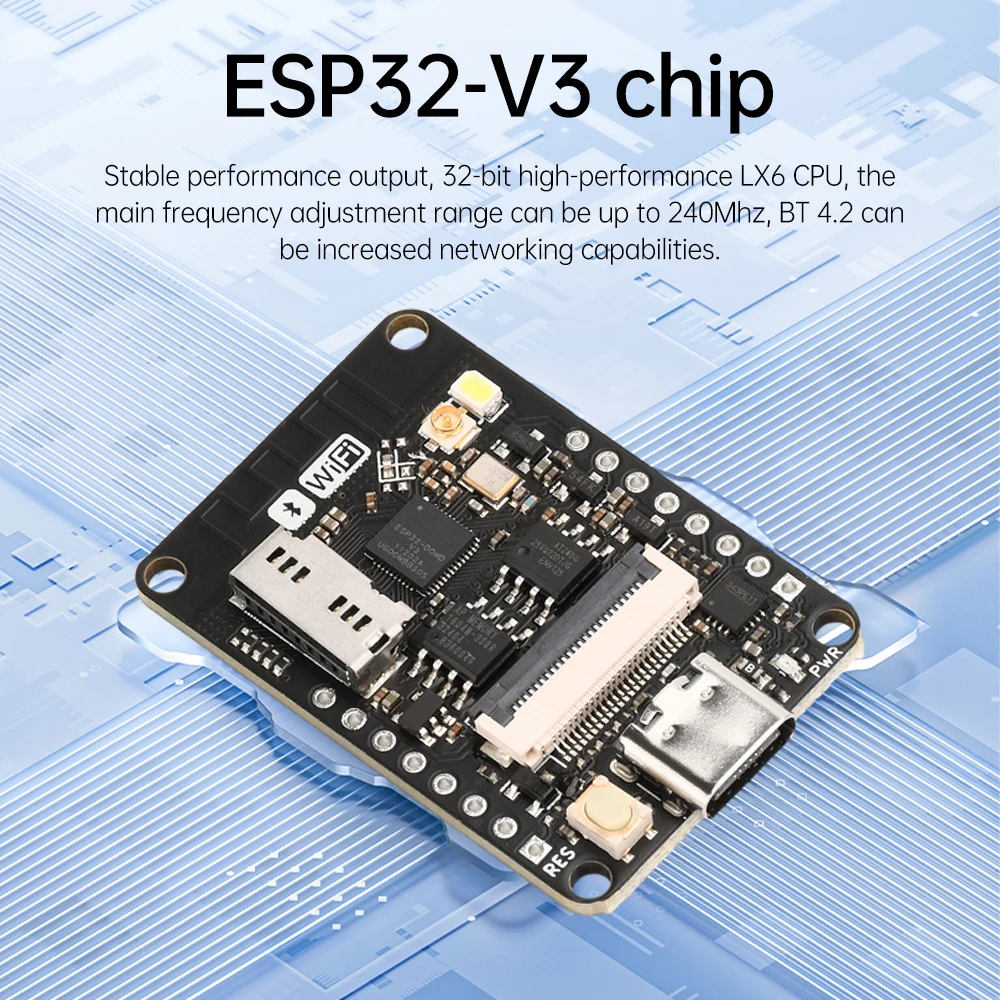

3. The onboard ESP32-V3 chip has stable performance output, 32-bit high-performance LX6CPU, the main frequency adjustment range can reach 240Mhz, and Bluetooth 4.2 can increase the networking function.

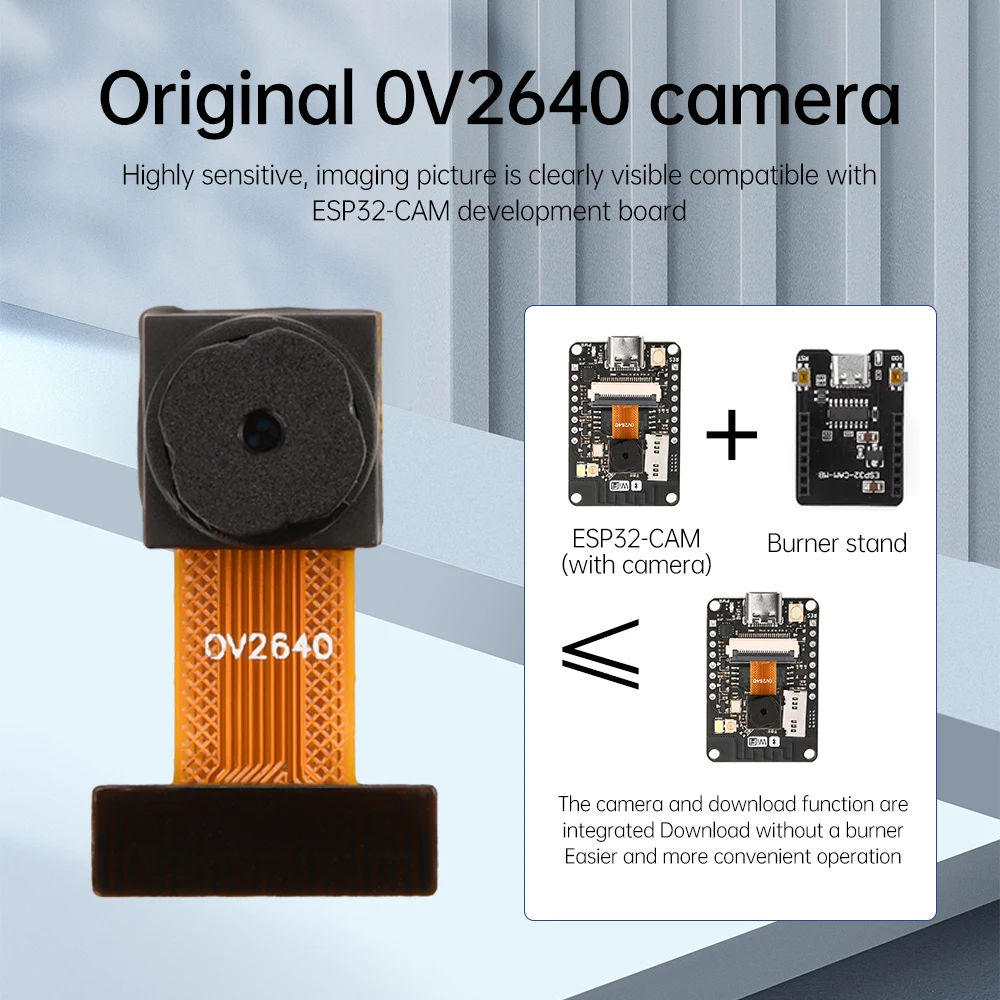

4. It is easy to use, using a more universal Type-C interface, the camera and download functions are integrated, and the download operation is simpler and more convenient without burning the base.
5.ESP32-CAM can be widely used in various IoT occasions, suitable for home smart devices OR wireless identification, industrial wireless control, etc., and is an ideal solution for IoT applications.
Performance introduction:
ESP32 integrates Wi-Fi, traditional Bluetooth and low-power Bluetooth (BLE Beacon) with 2 high-performance 32-bit LX6CPUs, adopts 7-stage pipeline architecture, main frequency adjustment range 80MHz to 240 MHz, on-chip sensors: Hall sensor, temperature sensor, etc. It fully complies with WiFi802.11b/g/n/e/i and Bluetooth 4.2 standards, can be used as a master mode to build an independent network controller, or can be used as a slave to run on other host MCUs: add networking functions to existing devices.

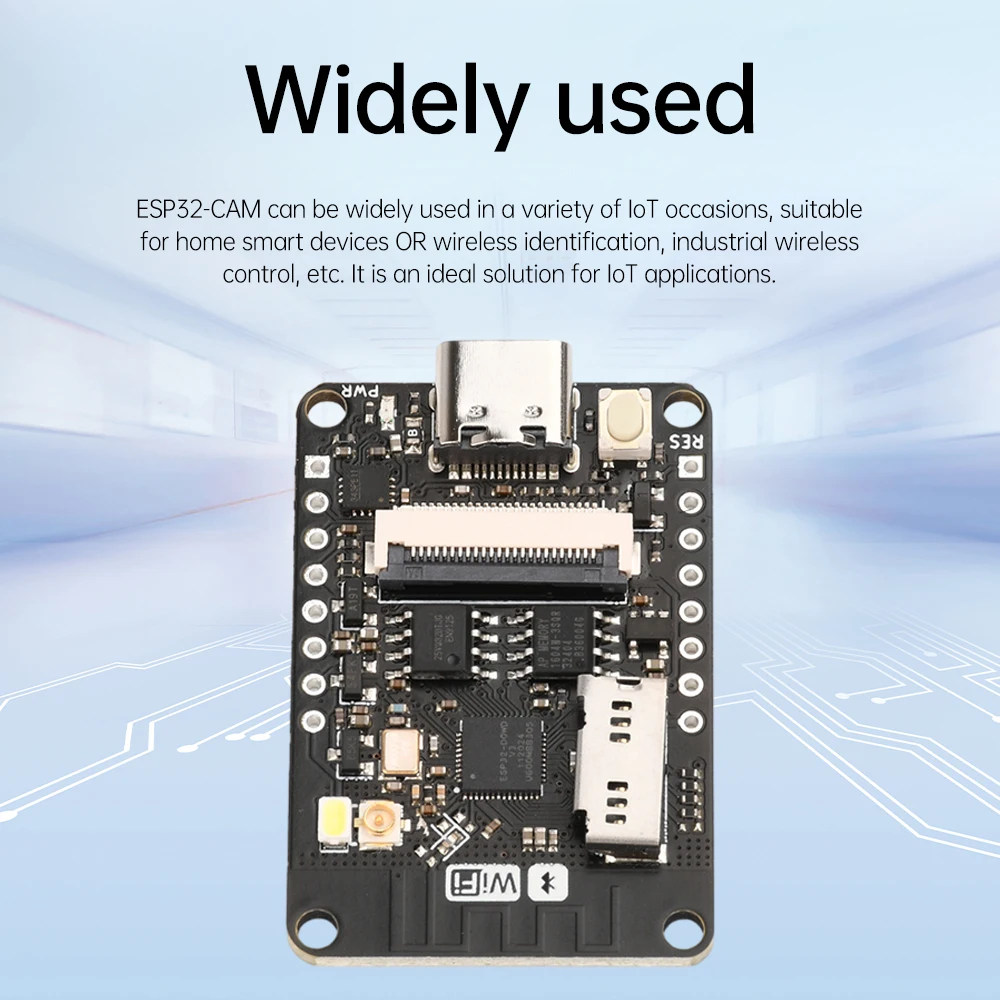

Wide range of practicality:
ESP32-CAM can be widely used in various IoT occasions, suitable for home smart devices OR wireless identification, industrial wireless control, etc., and is an ideal solution for IoT applications. Ultra-small 802.11b/g/n WiFi+BT/BLE SoC dual-mode single board.
Performance parameters:
Interface: Type-C
Chip: ESP32 V3 chip
Voltage: DC5V
Size: 40mm*27mm
ESP32 V3 chip parameters:
1.448 KB ROM, 520 KB SRAM, 16 KB RTC SRAM
2. QSPI supports multiple flash/SRAM
3. Built-in 8MHz oscillator
4. Supports self-calibration
5. Built-in RC oscillator, supports self-calibration
6. Supports external 2MHz to 60MHz main crystal oscillator (if using Wi-Fi/Bluetooth function, currently only 40MHz crystal oscillator is supported)
7. Supports external 32kHz crystal oscillator for RTC, supports self-calibration
8. 2 timer groups, each group includes 2 64-bit general timers and 1 main system watchdog
9. 1 RTC timer
10. RTC watchdog
11. 34 GPIO ports; 12-bit SARADC, up to 18 channels
12. Ethernet MAC interface with dedicated DMA, supports IEEE1588
13. Two-wire automotive interface (TWAI®, compatible with ISO11898-1); IR (TX/RX)

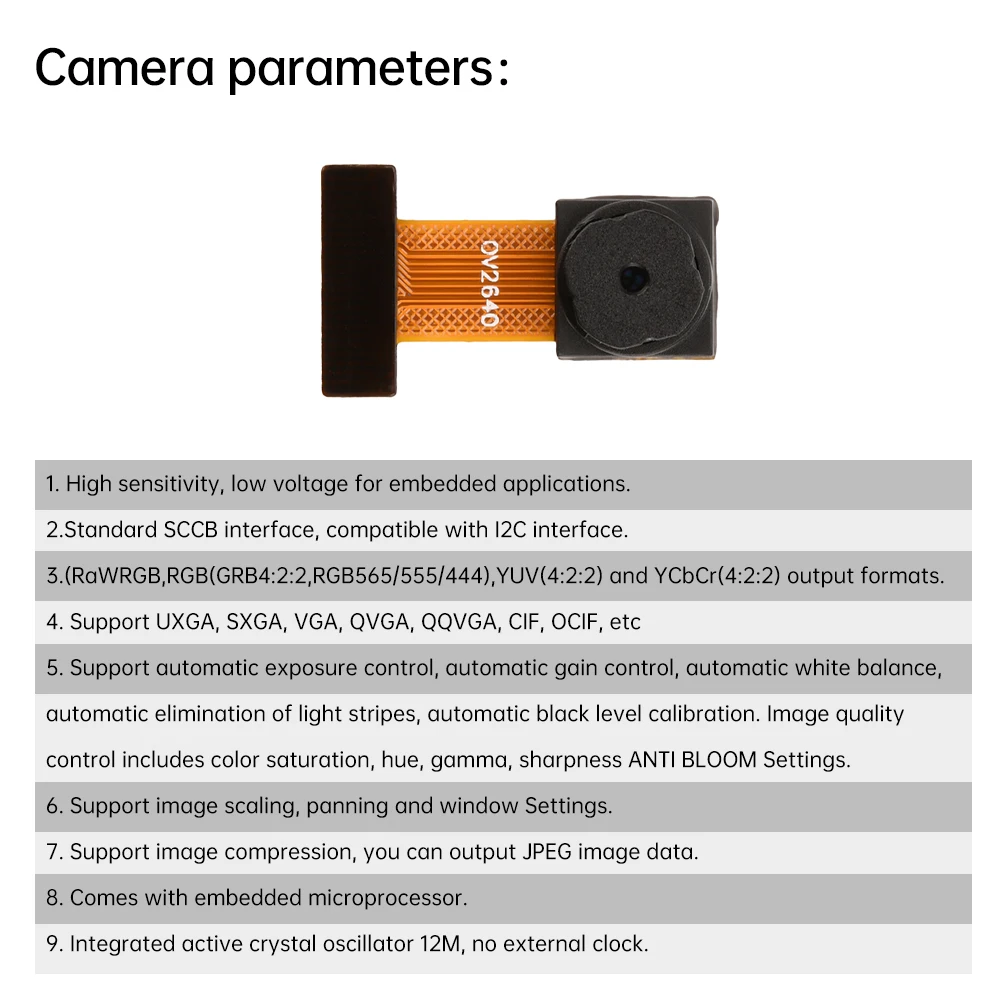

Camera parameters:
1. High sensitivity, low voltage suitable for embedded applications.
2. Standard SCCB interface, compatible with I2C interface.
3. (RaWRGB, RGB (GRB4:2:2, RGB565/555/444),
YUV (4:2:2) and YCbCr (4:2:2) output formats.
4. Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, OCIF, etc.
5. Support automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light stripes, automatic black level calibration. Image quality control includes color saturation, hue, gamma, sharpness ANTI BLOOM and other settings.
6. Support image zoom, pan and window settings.
7. Support image compression, you can output JPEG image data.
8. Comes with embedded microprocessor.
9. Integrated active crystal oscillator 12M, no external clock required.

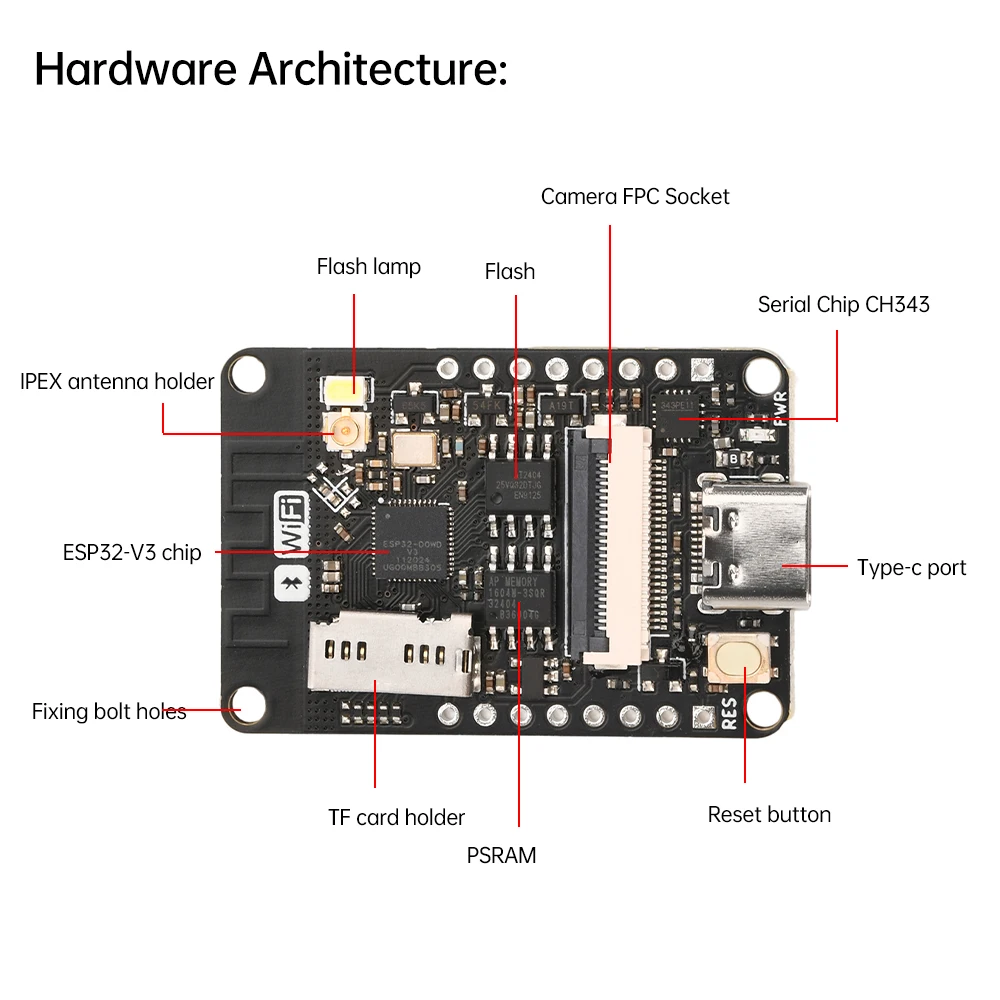

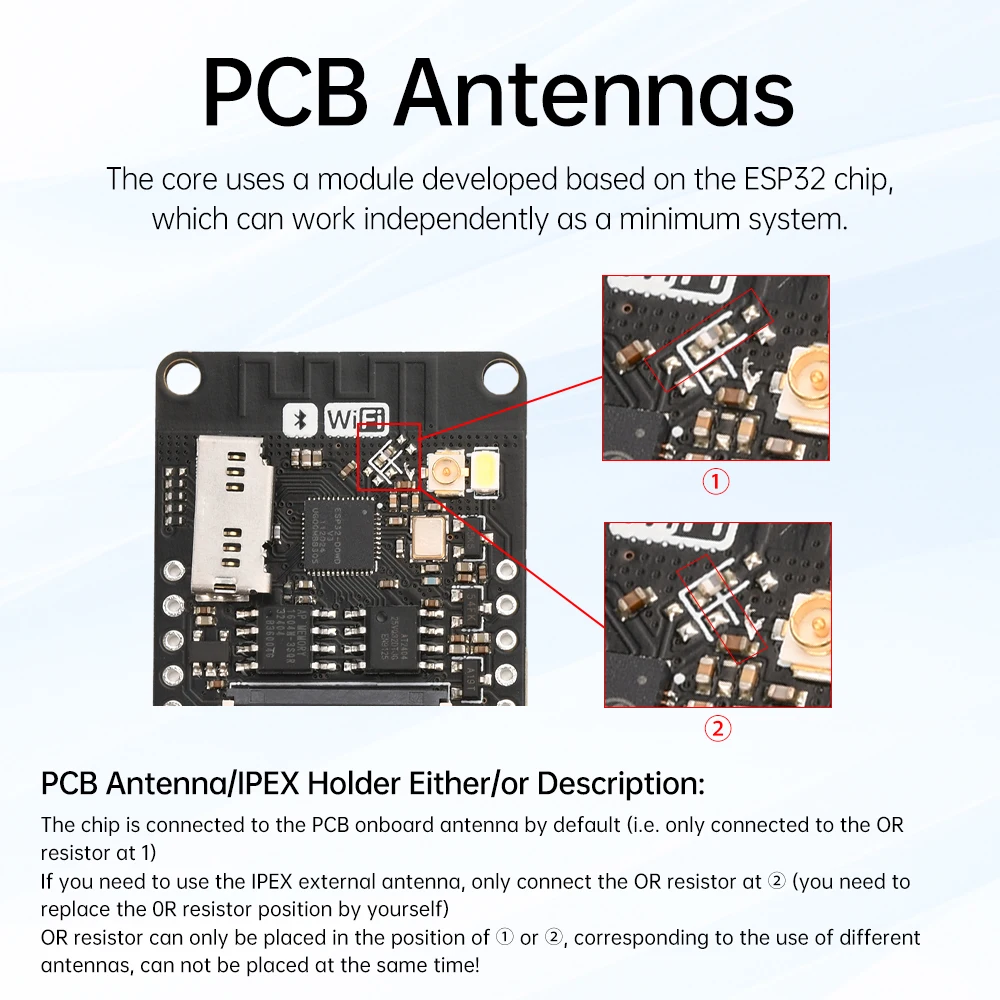

PCB antenna/IPEX socket description:
1. The chip is connected to the PCB onboard antenna by default (that is, only the OR resistor at ? is connected)
2. If you need to use the IPEX socket external antenna, just connect the OR resistor at ? (you need to change the R resistor position yourself)
3.0R resistor can only be placed at position ? or ?, corresponding to different antennas, and cannot be placed at the same time!

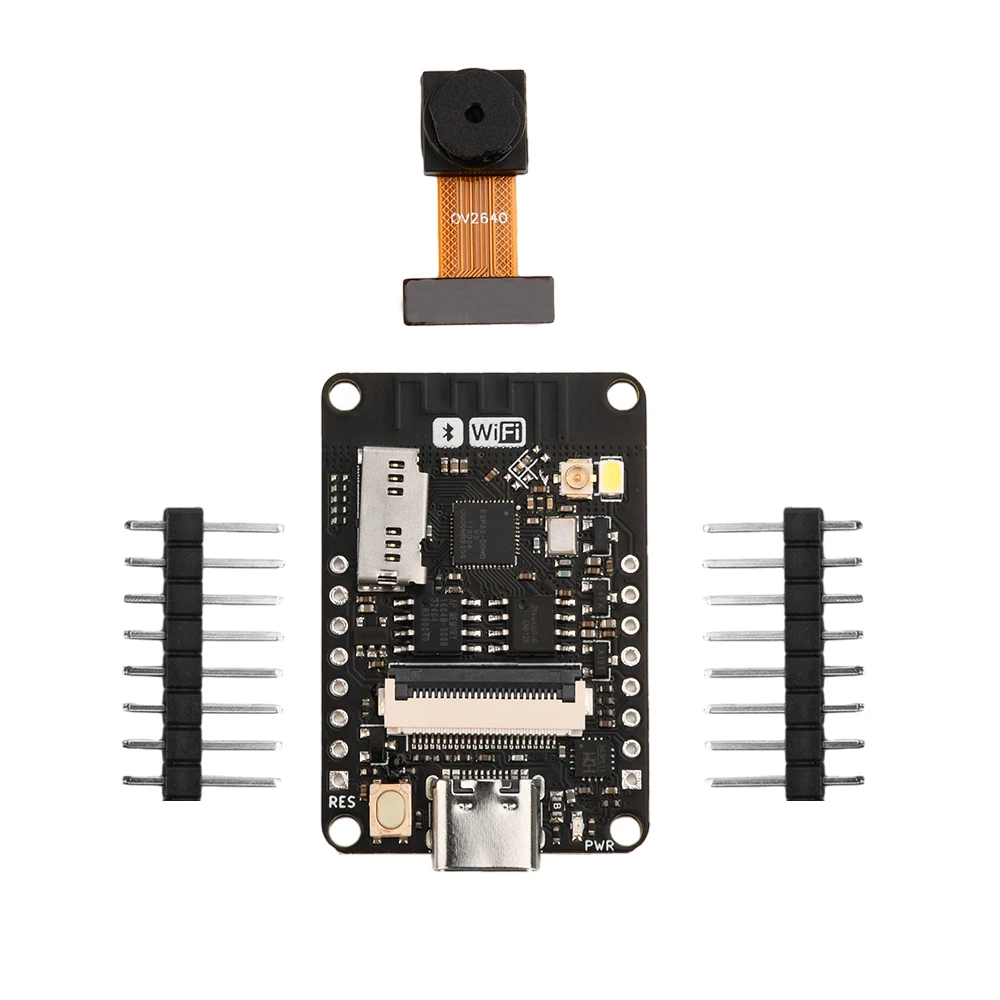

Product list:
Package 1:
1X development board

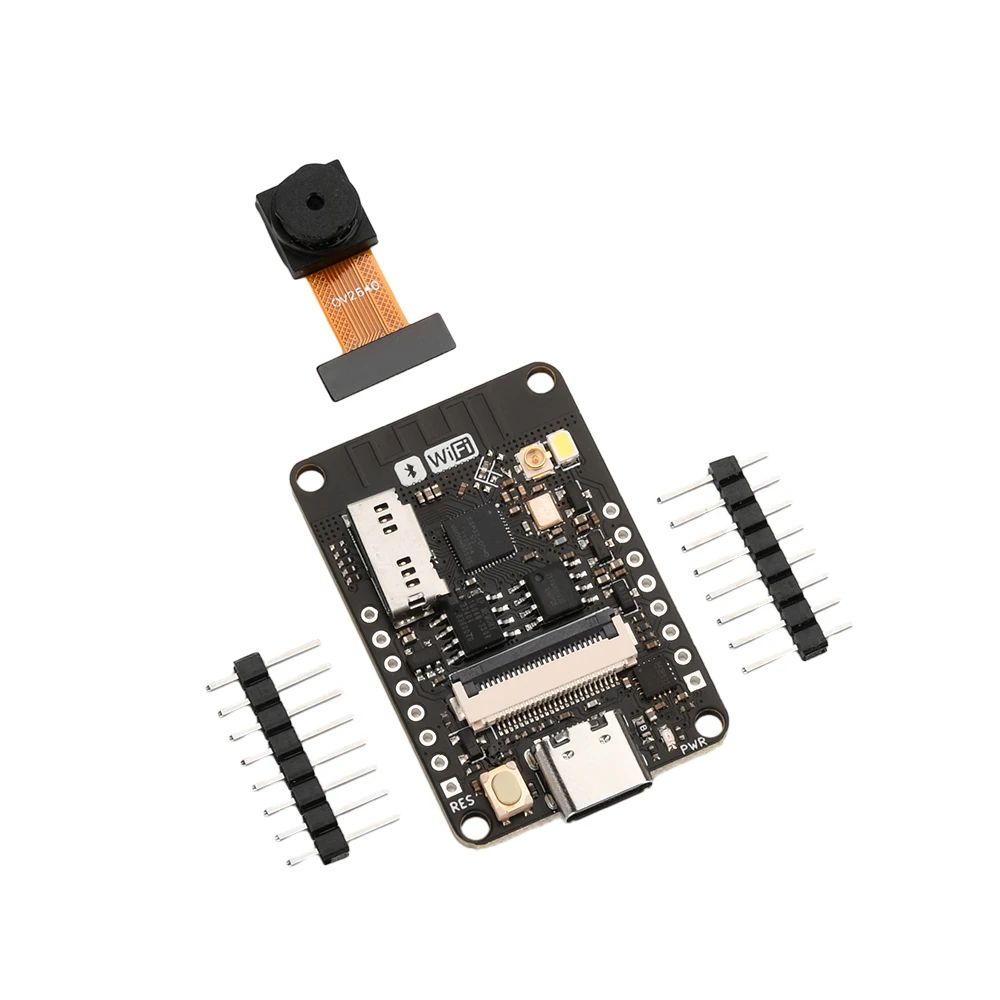

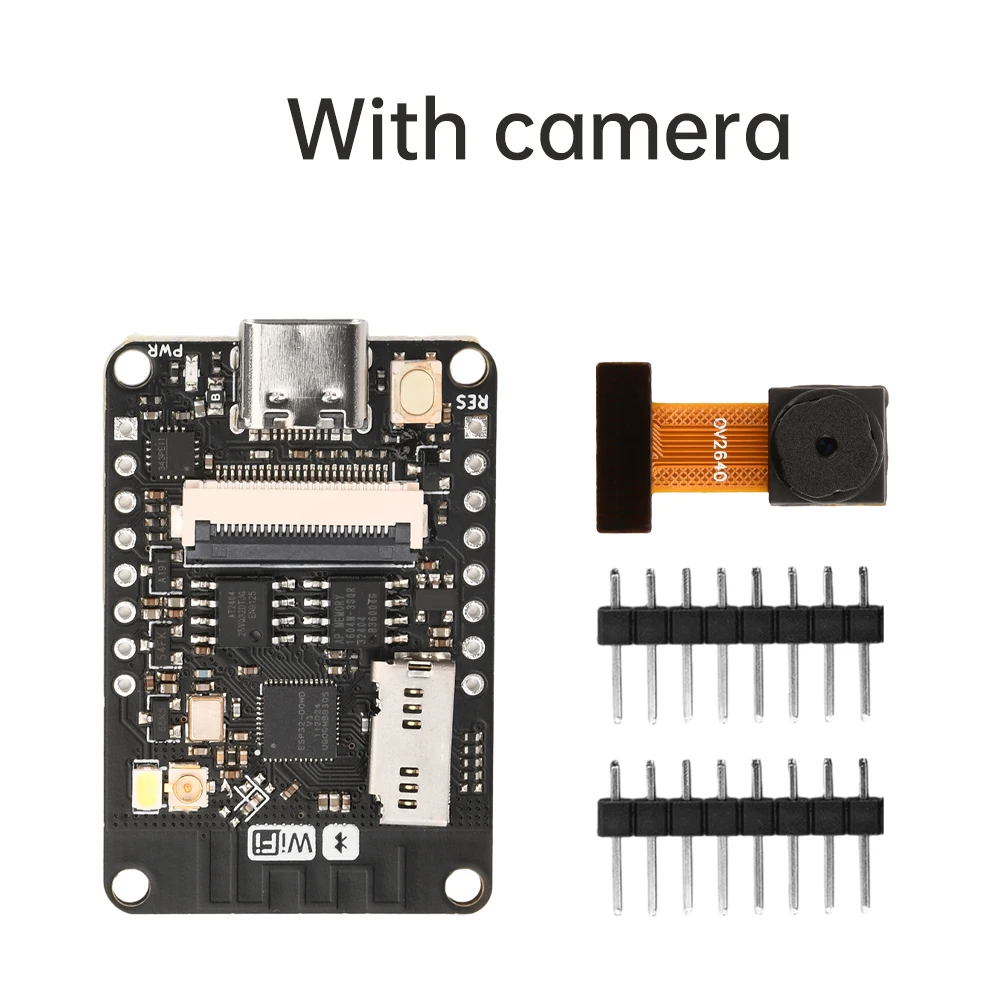

Package 2:
1X development board
1X camera
